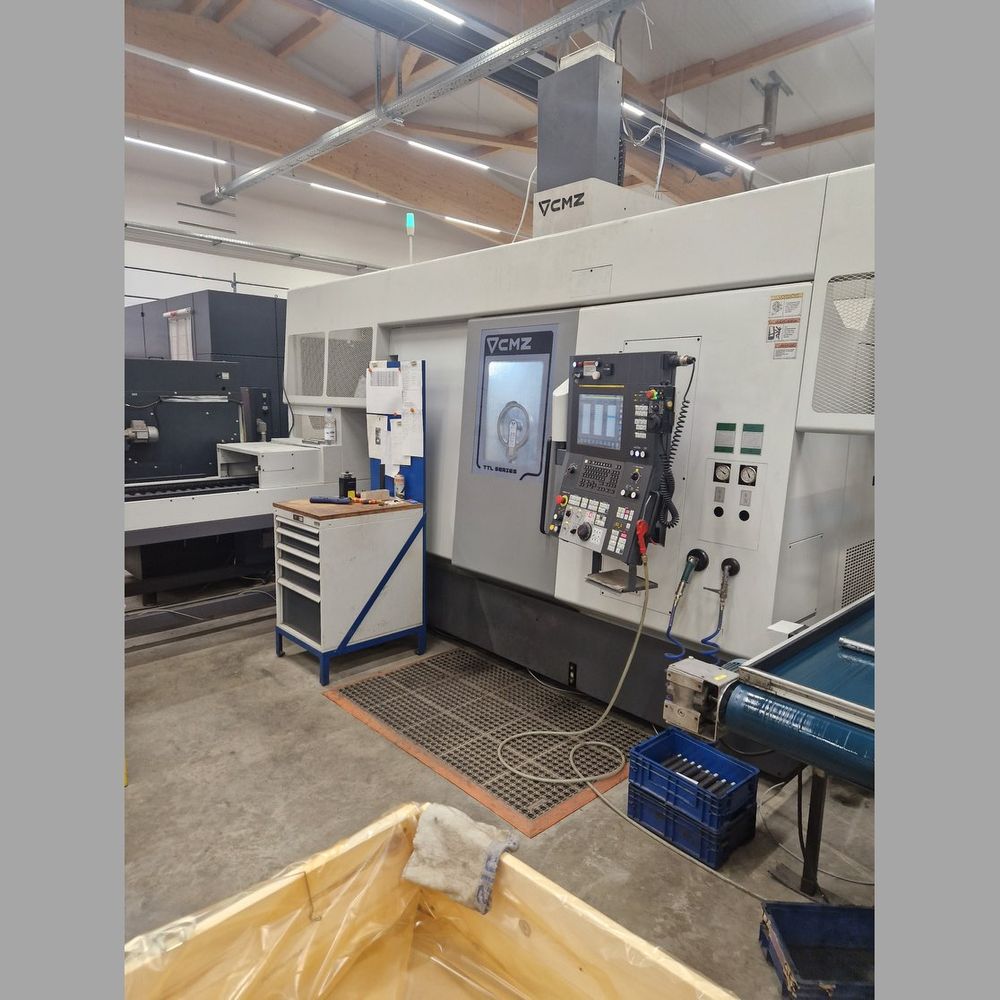

CMZ Fanuc 31i B 4000 rpm TTL-66-66-T1Y-T2Y+GL20II 3 Axis

Travel X turret: 167.5 mm
Travel Y turret: 90 mm
Travel Z turret: 515 mm
Travel X opposed spindle unit: 240 mm
Travel Z opposed spindle unit: 580 mm
Tailstock NC-controlled: 580 mm
C axis main spindle
C axis opposed spindle
Control: Fanuc 31i B

Tool measurement
Tool breakage monitoring
Tool life time monitoring
Fully enclosed work area
Rotating disc window
Work area light
Oil/emulsion mist extraction unit
Chip conveyor
Coolant unit
High pressure pump: 35/15/6 bar
Part infeed conveyor
Part outfeed conveyor
Internal gantry-type loading/unloading unit
Warning lamp

Max. turning diameter: 220 mm
Max. workpiece length: 614 mm
Max. swing diameter over bed cover: 240 mm
Max. clamping chuck diameter: 210 mm
Max. distance between spindle noses: 800 mm
Max. speed main spindle: 4000 rpm
Max. power main spindle at 10-40/100% duty: 35.5/23.5 kW
Max. torque main spindle at 10-40/100% duty: 205/150 Nm

Spindle bore main spindle: 72.5/66 mm
Spindle diameter front bearing main spindle: 110 mm
Spindle flange size main spindle: ASA 6 A2
Hollow clamping cylinder main spindle
Stop in main spindle
Coolant through main spindle

Max. speed opposed spindle: 4000 rpm
Max. power opposed spindle at 10-40/100% duty: 35.5/23.5 kW
Max. torque opposed spindle at 10-40/100% duty: 205/150 Nm

Spindle bore opposed spindle: 72.5/66 mm
Spindle diameter front bearing opposed spindle: 110 mm
Spindle flange size opposed spindle: ASA 6 A2
Coolant through opposed spindle
Tailstock quill reception: CM 3
No. of stations/driven upper turret: 12/12
Tool holder upper turret: 20x20/25x25
Speed tool drive upper turret: 12000 rpm
Torque tool drive upper turret: 42/32 Nm
No. of stations/driven lower turret: 12/12
Tool holder lower turret: 20x20/25x25
Speed tool drive lower turret: 12000 rpm
Torque tool drive lower turret: 42/32 Nm

Max. rapid traverse X: 30 m/min
Max. rapid traverse Y: 20 m/min
Max. rapid traverse Z: 30 m/min
Max. acceleration X/Y/Z: 1/1/1 g

2 collet chucks (Hainbuch Axfix 65)
1 set tool holder for turning tools
1 set tool holder for driven tools
Total power requirement: 87 kVA
Machine dimensions (LxWxH) approx.: 2860x2377x2289 mm
Machine weight approx.: 11000 kg
