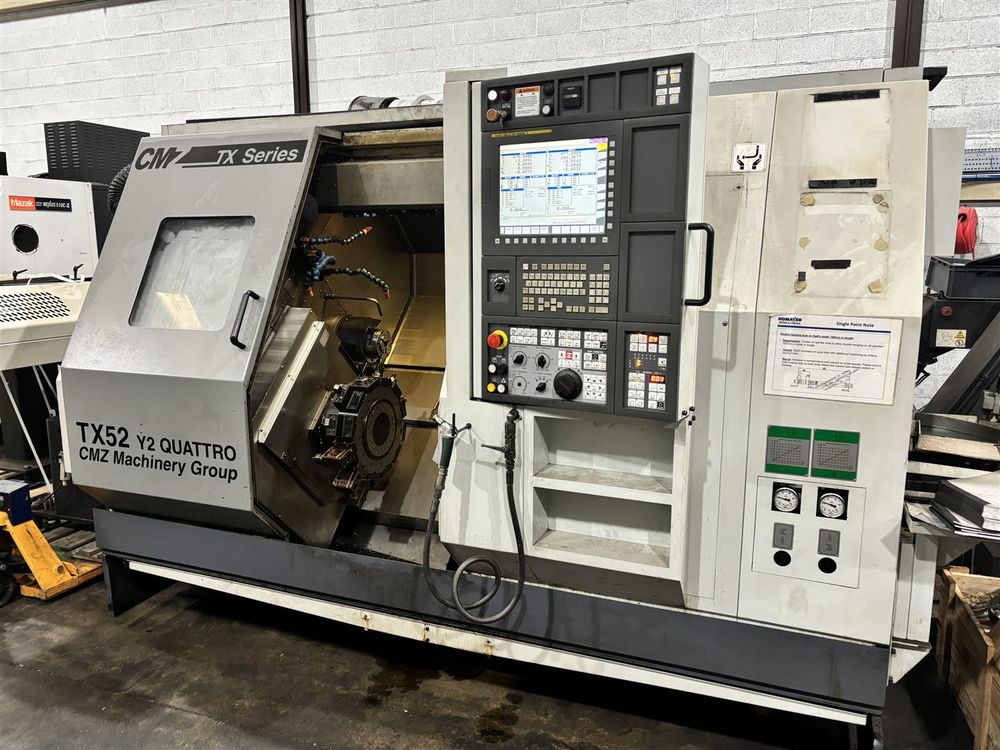

CMZ FANUC 31i-Model A 5000 rpm TX52 Y2 QUATTRO 5 Axis

X axis travel 190 mm
Y axis travel +/-40 mm
Y2 axis travel +/-40 mm
Z axis travel 500 mm
C axis 0.001 degree
Sub Spindle C axis 0.001 degree
Control FANUC 31i-Model A
Spindle nose A2-6
Spindle speed 5000 rpm
Spindle motor power 18 kW
Sub Spindle nose A2-6
Sub Spindle motor 7.5 kW
Sub Spindle stroke 650 mm (B axis)
Lower Turret 12 Station
Lower Turret Milling Motor 18 kW
Lower Turret Milling Speed 6000 rpm
Upper Turret 12 Station
Upper Turret Milling Motor 18 kW
Upper Turret Milling Speed 6000 rpm
Bar capacity 51 mm
Sub Spindle Bar Capacity 51 mm
Maximum cutting diameter 255 mm
Machine dimensions 2840 x 2190 x 2030 mm
Machine weight 9200 kg
3 Jaw Chuck
Collet Chuck
Collets
Coolant
Interlocked guards
Low volt light
Parts catcher
Parts conveyor
Shaft unloader
Swarf conveyor
Tool setter
Tooling
Twin Spindle
Milling
Y-axis
