CNC CONTROL 6,000 rpm GENTURN 36CS 2 Axis

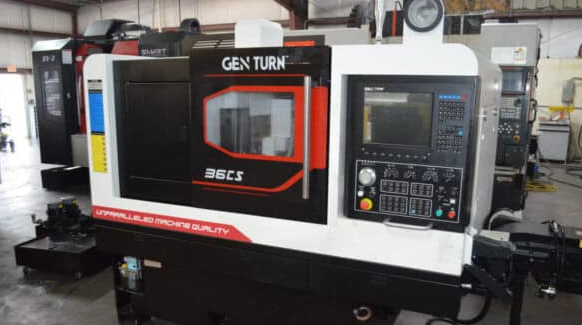

GENTURN 36CS
Year: 2021

Main spindle speed 6,000 rpm
Main spindle motor 10 hp
Spindle pulley ratio 2:1
Main spindle bearings 5 (3 front, 2 rear)
Collet nose Brown & Sharpe #22 or Traub A-32
Drawtube bore 1.456" (37 mm)
Max barstock diameter (standard) 1.25" (32 mm)
Max barstock diameter (with adapter) 1.375" (36 mm)
Main X-axis travel 7.28" (185 mm)
Main Y-axis travel 19.29" (490 mm)
Main Z-axis travel 6.50" (165 mm)
Rapid travel speed (XYZ) 1,181 IPM (30 m/min)
Minimum input unit 0.00004" (0.01 mm)
OD tool positions 6 (1/2" or 12 mm)
ID tool positions 5

Sub spindle speed 6,000 rpm
Sub spindle motor 5 hp
Spindle pulley ratio 2:1
Sub spindle bearings 4 (quad-duplex)
Sub collet nose Brown & Sharpe #22 or Traub A-32
Max barstock diameter in collet 1.250"
Pass-through diameter 1.080" (27.5 mm)
Sub X-axis travel 11.53" (293 mm)
Sub Z-axis travel 11.61" (295 mm)

Cross slide live tools 4 ER-20
Cross slide live tool speed 4,000 rpm
Cross slide live tool power 2.0 hp (1.5 kW)
Front slide live tools 3 ER-20
Front slide live tool speed 4,000 rpm
Front slide live tool power 1.0 hp (0.75 kW)
Live tool collet size ER-20
Tool shank capacity 0.5"–13 mm
Max live tool RPM 4,000 rpm

CNC control included
Bar capacity 36 mm (1-3/8")
Dual C-axis and Y-axis
Y-axis travel 19"
27 total tool stations
11 driven tool positions
Simultaneous main & sub-spindle machining
Parts catcher
Chip conveyor
Edge Patriot 338 12' barfeeder
Rapid rates 1,181 IPM

Sold and installed new in 2021
