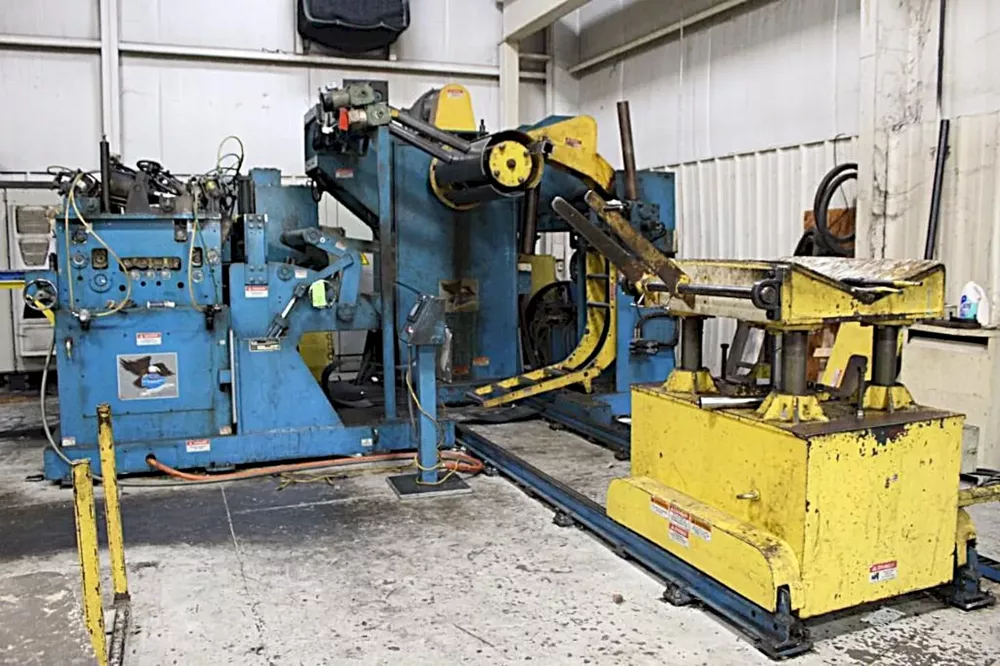

COE COMPACT COIL LINE 20,000# X 40" Coil weight capacity: 20,000 lb

Coil inside diameter: 20–24 in
Coil outside diameter: 72 in max
Coil maximum width: 40 in
Coil maximum thickness: 0.25 in
Die space: 312 in x 84 in
Stroke: 30 in
BDC: 0.5 in
SPM: 10–20
Max die height: 54 in
Slide adjust: 12 in
Moving bolster height: 24 in
Feed velocity: 200 FPM
Feed acceleration: 20 ft/sec²
Feed accuracy: ±0.005 in
Expansion type: Wedge type hydraulic cylinder
Pinch rollers: 2 rolls, 4.42 in dia.
Feeder rollers: 2 rolls, 5.66 in dia.
Straightener rollers: 7 rolls, 3.36 in dia., 4 over 3
Material type: High-strength low-alloy steel (HSLA)
Equipped with Lewco conveyor
