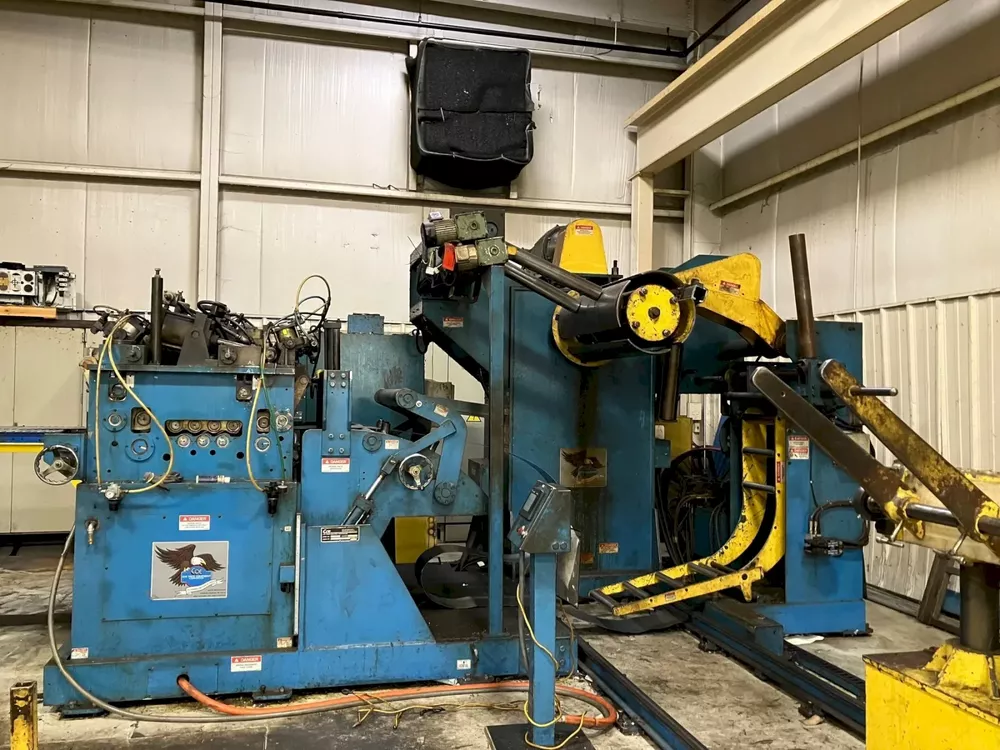

COE NCHF-40 Coil Weight Capacity 20,000 Lbs

Maximum Width Capacity 40"
Maximum Coil Diameter 72"
Coil Inner Diameter 20" - 24"
Expansion Type Wedge Type Hydraulic Cylinder
Pinch Rollers 2 rolls — 4.42" Dia.
Feeder Rollers 2 rolls — 5.66" Dia.
Straightener Rollers 7 rolls — 3.36" Dia. — 4 over 3
Material High-Strength Low-Alloy Steel (HSLA)
HSLA 50k Yield Max Thickness 0.250" @ 18" wide
HSLA 50k Yield Min Thickness 0.020" @ 36" wide
HSLA 50k Yield Min Thickness 0.187" @ 36" wide
