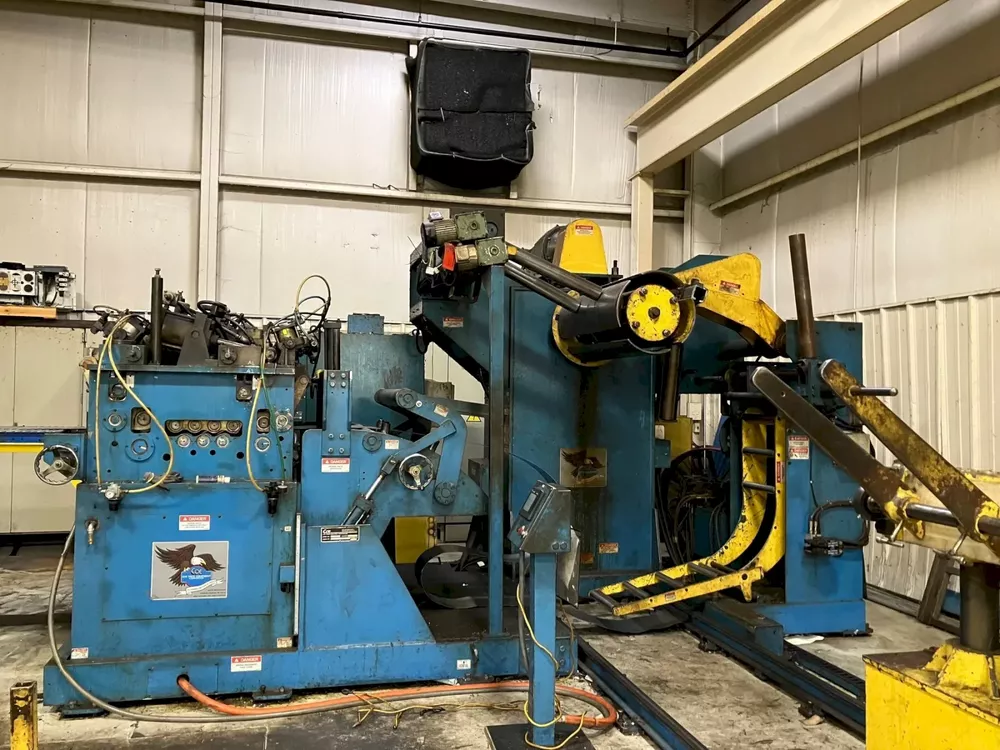

COE NCHF-40 Coil weight capacity: 20,000 Lbs

Ref : 2756874-3-AW

Condition : Used

Manufacturer : COE

Model : NCHF-40

Capacity : Coil weight capacity: 20,000 Lbs

Year(s) : 2004

Quantity : 1

Location : Seller or machines location:
AMERICA North (USA-Canada-Mexico)

Coil inner diameter: 20"–24"
Coil outer diameter: 72" max
Coil width: 40" max
Coil thickness: 0.25" max

Expansion type: Wedge type hydraulic cylinder
Pinch rollers: 2 rolls — 4.42" diameter
Feeder rollers: 2 rolls — 5.66" diameter
Straightener rollers: 7 rolls — 3.36" diameter — 4 over 3
Material specifications: High-Strength Low-Alloy Steel (HSLA)

HSLA 50k Yield max thickness: 0.250" @ 18" wide
HSLA 50k Yield min thickness: 0.020" @ 36" wide
HSLA 50k Yield min thickness: 0.187" @ 36" wide
Includes Lewco conveyor
