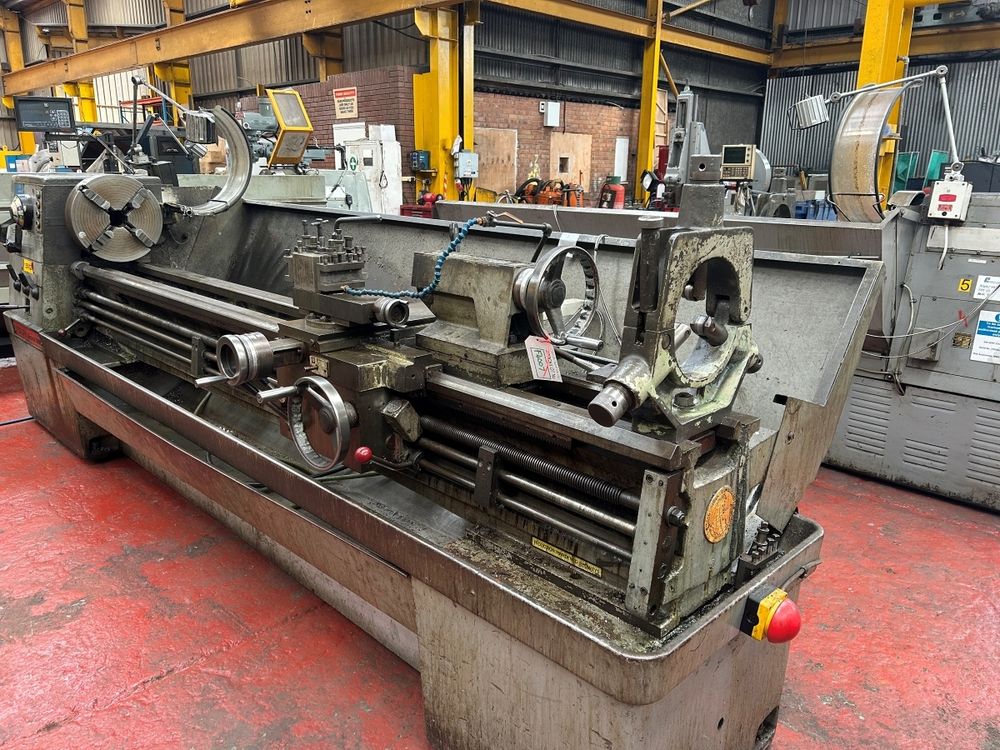

Colchester Engine Lathe 1600 rpm Mascot 1600 x 100"

Ref : 2739208-3-AW

Condition : Used

Manufacturer : Colchester

Type : Engine Lathe

Spindle Speed : 1600 rpm

Model : Mascot 1600 x 100"

Year(s) : -

Quantity : 1

Location : Seller or machines location:
EUROPE (Western and Northern)

Swing Over Bed: 431 mm
Swing Over Saddle: 266 mm
Swing in Gap: 711 mm
Maximum Distance Between Centres: 2540 mm
Spindle Speeds: 20 – 1600 rpm
Spindle Bore: 74 mm
Sliding Feed: 0.6 – 1 mm/rev
Surfacing Feed: 0.3 – 0.5 mm/rev
Screw Cutting TPI: 4 – 72
Screw Cutting MOD: 8 – 60
Screw Cutting Metric: 0.4 – 14
Screw Cutting DP: 0.3 – 3.5
Tailstock Taper: 5MT
Motor Power: 12.5 HP
Electrics: 415 V, 3-phase, 50 Hz
4 Jaw Chuck
Fixed 3 Point Steady
Taper Turning
2 Axis DRO
Quick Change Tool Post & Tool Holders
Chuck Guard & Rear Splash Guard
Emergency Stop
Approximate Dimensions: 4000 x 1300 x 1500 mm
Approximate Weight: 2750 kg
