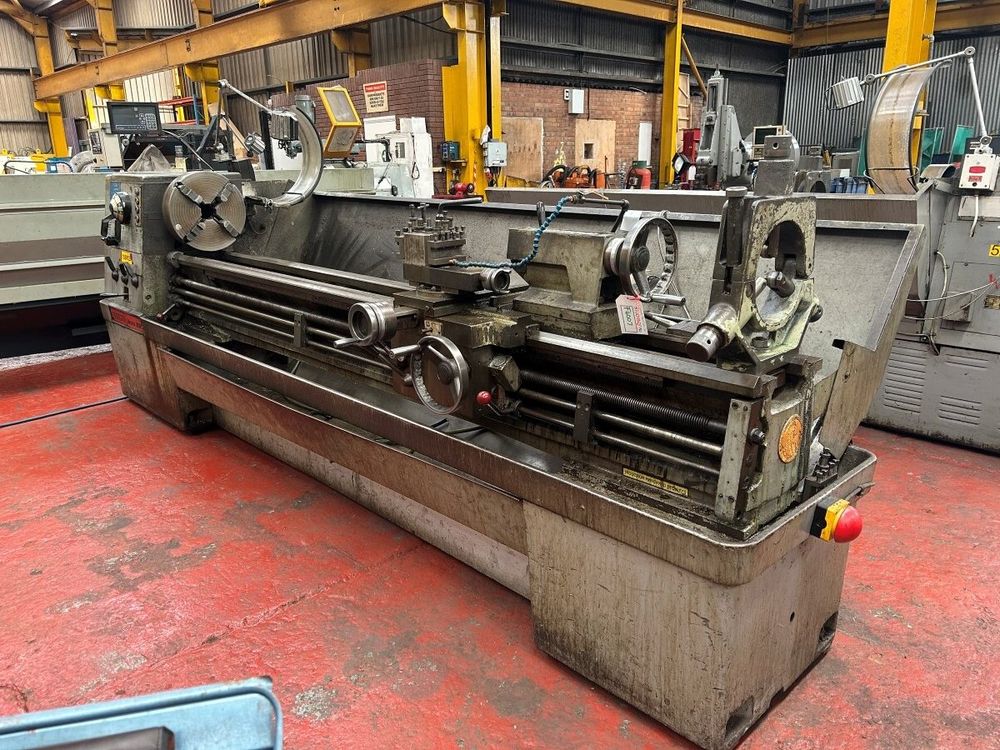

Colchester Engine Lathe 1600rpm MASCOT 1600 X 100”
Ref :
2718919-3-MT
Condition :
Used
Manufacturer :
Colchester
Type :
Engine Lathe
Spindle Speed :
1600rpm
Model :
MASCOT 1600 X 100”
Year(s) :
-
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
GAP BED LATHE
COLCHESTER MASCOT 1600 X 100”
Swing Over Bed 431mm
Swing Over Saddle 266mm
Swing in Gap 711mm
Maximum distance Between Centres 2540mm
Spindle Speeds 20 – 1600rpm
Spindle Bore 74mm, Feeds
Sliding 00.6 – 1mm/rev
Surfacing 0.03 – 0.5mm/rev
Screw Cutting TPI 4 – 72
MOD 8 – 60, Metric 0.4 – 14mm Pitch, DP 0.3 – 3.5
Tailstock Taper 5MT, Motor 12.5HP
Electrics 415v, 3ph, 50 Cycles
Complete With 4 Jaw Chuck
Fixed 3 Point Steady, Taper Turning
2 Axis DRO, Quick Change Tool Post & Tool Holders
Chuck Guard & Rear Splash Guard
Emergency Stop
Approximate Dimensions 4000 x 1300 x 1500mm
Approximate Weight 2750kg
