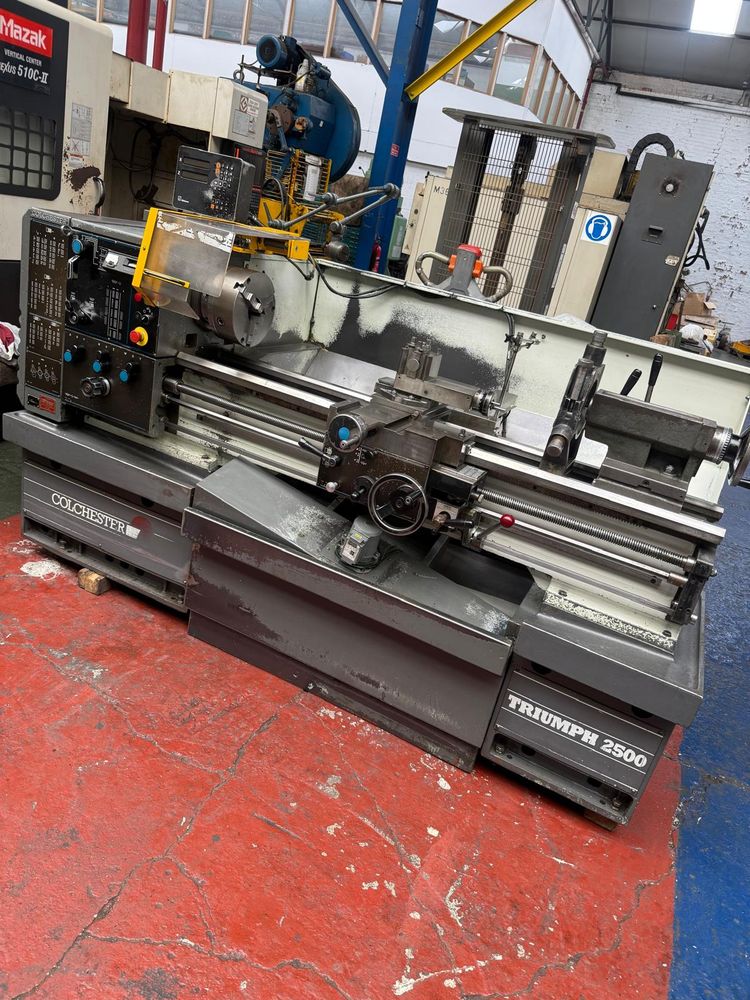

Colchester Engine Lathe 2500 rpm TRIUMPH VS2500 50"

Swing Over Bed: 400 mm (15.7")
Swing Over Cross Slide: 246 mm (9.6")
Height of Centres: 195 mm (7.7")
Swing in Gap: 585 mm (23")
Gap Width from Faceplate: 165 mm (6.5")
Bed Length: 1270 mm (50")
Distance Between Centres: 1270 mm (30")
Spindle Nose: D1–6 Camlock
Taper in Spindle Nose Bush: No. 4 MT
Spindle Bore: 54 mm (2.1")
Maximum Spindle Speed: 2500 rpm
Low Range: 14–300 rpm
Medium Range: 36–830 rpm
High Range: 109–2500 rpm
Maximum Spindle Motor Power: 7.5 kW (10 HP)
Number of Imperial Pitches: 56
Range of Imperial Pitches: 2–56 TPI
Number of Diametral Pitches: 20
Range of Diametral Pitches: 8–56 DP
Number of Metric Pitches: 51
Range of Metric Pitches: 0.2–14 mm Pitch
Number of Module Pitches: 20
Range of Module Pitches: 0.2–3.5 MOD
Tailstock Quill Taper: No. 5 MT
Tailstock Quill Travel: 145 mm (5.7")
