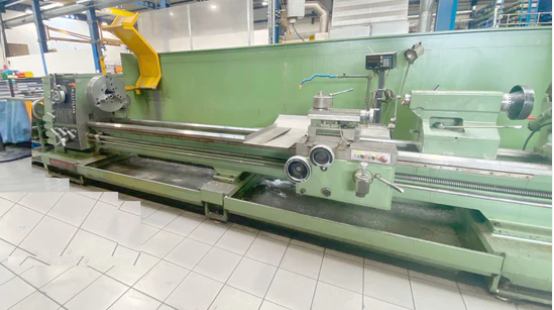

Colchester Engine Lathe 800 rpm Magnum L.B.800-4000

Ref : 2762469-3-MT

Condition : Used

Manufacturer : Colchester

Type : Engine Lathe

Spindle Speed : 800 rpm

Model : Magnum L.B.800-4000

Year(s) : -

Quantity : 1

Location : Seller or machines location:
EUROPE (Western and Northern)

Centre height: 380 mm
Distance between centres: 4000 mm
Swing over cross-slide: 520 mm
Swing over bed: 740 mm
Spindle hole: 168 mm
Spindle speeds steps: 20
Spindle speed from: 10 rpm
Spindle speed up to: 800 rpm
Tailstock taper: CM 6
Spindle diameter: 95 mm
Spindle stroke: 190 mm
Spindle motor: 15 kW
Machine weight: 5200 kg
Overall length: 5920 mm
Overall width: 1200 mm
Overall height: 1500 mm
3-jaw chuck diameter: 500 mm

Features / Equipment
2-axis digital readout
Set of hard jaws
Set of soft jaws
Foldable three-jaw steady
Coolant system
Quick-change toolholder Multifix
Lamp
Drilling tailstock
Chuck guard
