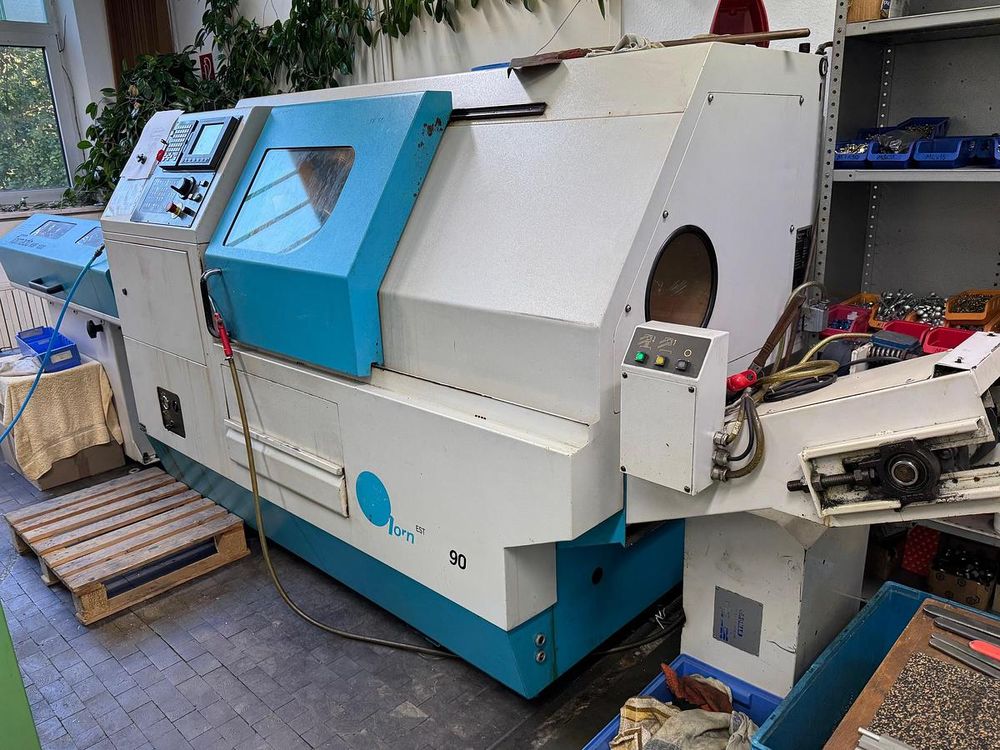

Colchester Fanuc Series 21i-T 4,000 rpm TORNADO A90 2 Axis
Ref :
2753272-3-GO
Condition :
Used
Manufacturer :
Colchester
Controller :
Fanuc Series 21i-T
Spindle Speed :
4,000 rpm
Model :
TORNADO A90
Nb Of Axis :
2 Axis
Year(s) :
2001
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
X-axis travel: 200 mm
Z-axis travel: 450 mm
Control: Fanuc Series 21i-T
Max. turning diameter over bed: approx. 410 mm
Max. turning diameter over tailstock / slide: 170–230 mm
Max. turning length: 450 mm
Spindle speed: 4,000 rpm
Spindle motor power: approx. 11 kW
Spindle bore / bar capacity: 52 mm
Spindle nose: A2-5 / ASA 5
Bar feeder: TORNADO MBF-1000
Hydraulic collet chuck system
Chip conveyor
Parts collection container
Machine dimensions (L×W×H): 2362 × 1150 × 1620 mm
Bar feeder length: 1675 mm
Machine weight: 2,415 kg
