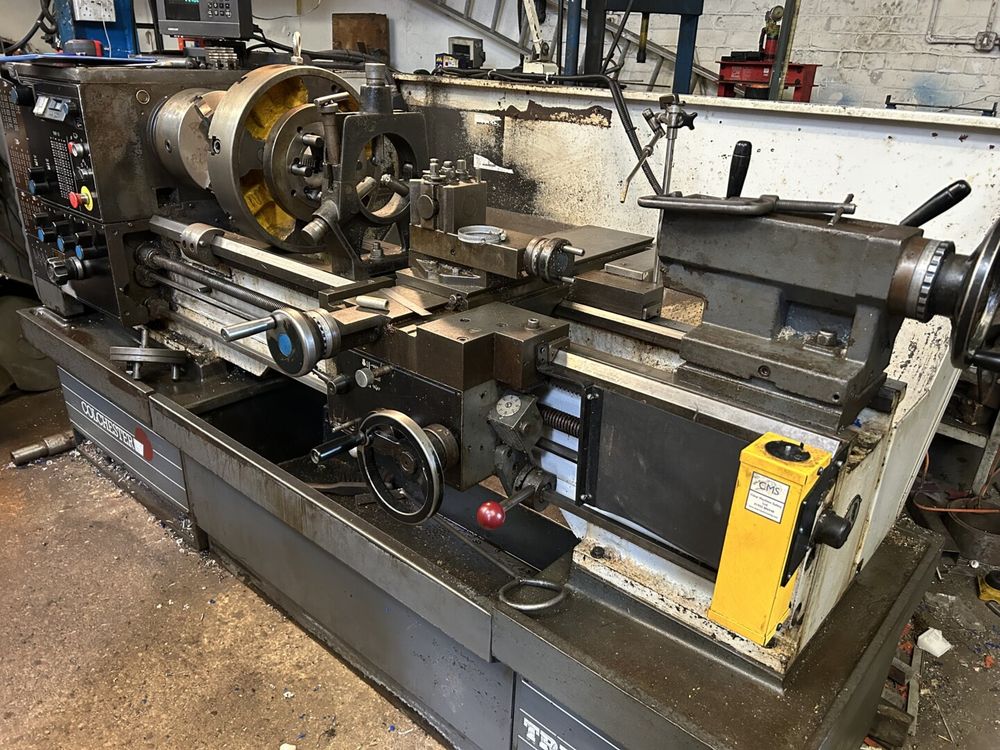

Colchester Gap Bed Centre Lathe 25 rpm Triumph VS2500

Swing over bed: 400 mm
Swing over cross slide: 246 mm
Swing in gap: 585 mm
Gap width in front of faceplate: 165 mm
Maximum distance between centres: 1570 mm
Spindle speeds: 15 – 25 rpm
Spindle nose: D1-6 Camlock
Spindle nose taper: 4MT
Spindle bore: 54 mm
Feeds sliding: 0.018 – 1.2 mm/rev
Feeds surfacing: 0.009 – 0.6 mm/rev
Screw cutting TPI: 2 – 56
Screw cutting metric: 0.2 – 14 mm pitch
Screw cutting DP: 8 – 56
Screw cutting module: 0.2 – 3.5 MOD
Tailstock taper: 5MT
Tailstock quill traverse: 145 mm
Motor power: 7.5 kW
Electrics: 415 V, 3 ph, 50 Hz
3-jaw chuck
4-jaw chuck
Fixed steady
Quick change tool post
2-axis DRO
Coolant system
Lovo light
