Colchester STRAIGHT BED LATHE 1400rpm MASTIFF 1400 X 120”
Ref :
2718917-3-MT
Condition :
Used
Manufacturer :
Colchester
Type :
STRAIGHT BED LATHE
Spindle Speed :
1400rpm
Model :
MASTIFF 1400 X 120”
Year(s) :
-
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)

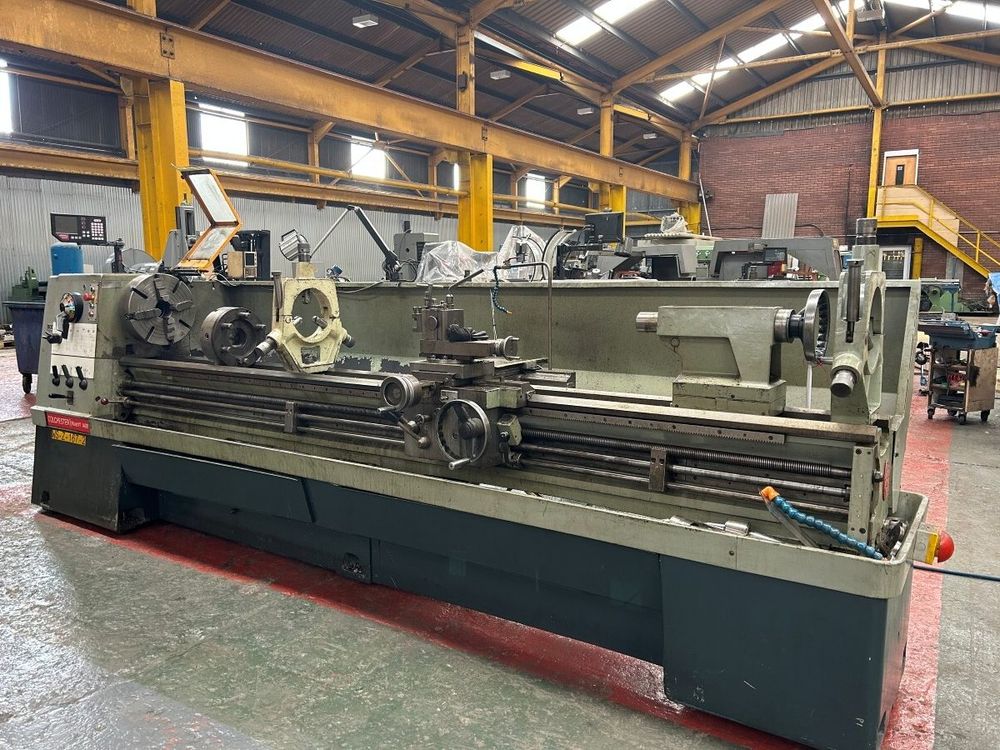

STRAIGHT BED LATHE
COLCHESTER MASTIFF 1400 X 120”
Swing Over Bed 535mm
Swing Over Saddle 370mm
Swing in Gap 810mm
Maximum distance Between Centres 3050mm
Spindle Speeds 18 – 1400rpm
Spindle Bore 90mm
Feeds, Sliding 0.06 – 1mm/rev
Surfacing 0.03 – 0.5mm
Screw Cutting TPI 2 – 72, MOD 0.3 – 3.5
Metric 0.4 – 14, DP 8 – 60, Tailstock Taper 5MT
Motor 12.5HP, Electrics 415v, 3ph, 50 Cycles
Complete With
3 & 4 Jaw Chuck, 2 No Fixed 3 Point Steady
2 Axis DRO, Quick Change Tool Post & Tool Holders
Chuck Guard & Rear Splash Guard, Emergency Stop
Approximate Dimensions 4500 x 1300 x 1500mm
Approximate Weight 3500kg
