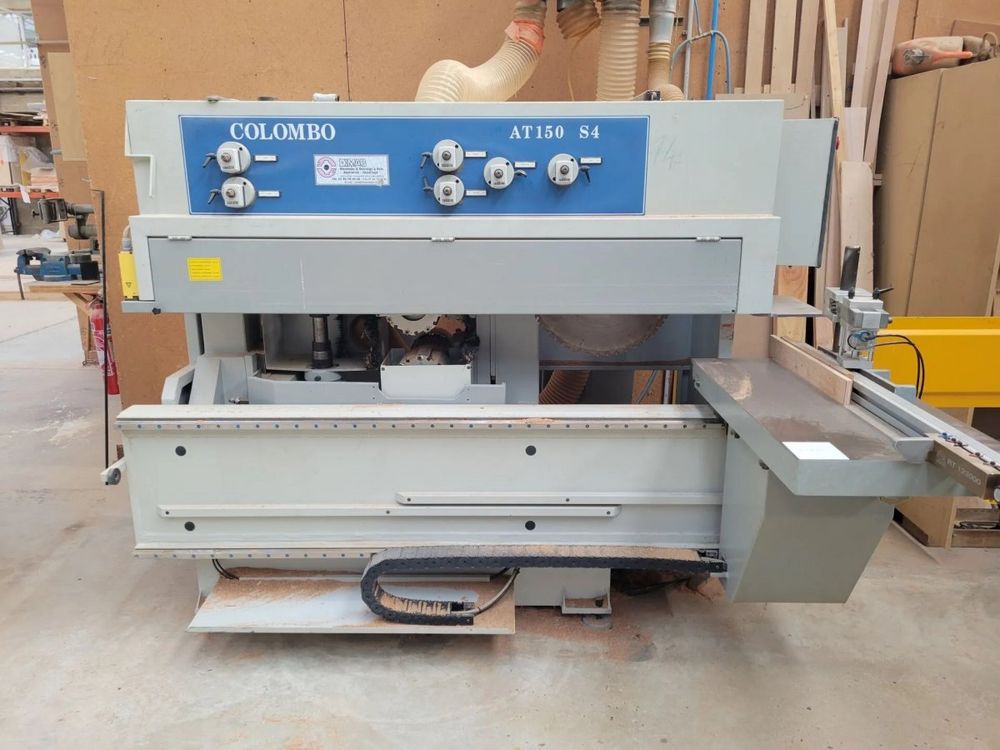

Colombo AT150 S4 Tenoner

Technical characteristics :
- Saw 2.2 kw : 3000 rpm
- Unwinders above/under 2x2,2 kw : 3000 rpm
- Cast iron table : 290 x 900 mm useful
- Travel : manual on ball socket slides
- 1 pneumatic presser for wood maintenance
- Ruler with double stop : 3000 mm
- Orientation of the rule 45-45

Group blade :
- diameter blade 500 mm.,
- diameter shaft blade 30 mm.,
- rotation speed blade 3000 T/min,
- Engine power blade kW 2,2,
- Manual horizontal movement with decimal display

Upper horizontal tree :
- shaft diameter 40 mm.,
- shoulder length knife holder 150 mm.,
- diameter head knife holder 200 mm.,
- rotation speed shaft 3000 T/min,
- engine power kW 2,2,
- manual horizontal displacement,/- 30 mm. with display decimal
- manual vertical travel with decimal display

Lower horizontal shaft:
- shaft diameter 40 mm,
- shoulder length knife holder 150 mm,
- diameter head knife holder 200 mm,
- rotation speed shaft 3000 T/min,
- engine power kW 2,2,
- manual vertical travel with decimal display,
- max distance between the two knives-holder heads 160 mm.,
- min distance between the two shoulder heads 5 mm.

Tree to be held :
- shaft diameter 50 mm.,
- useful length shaft 170 mm.,
- max diameter tools 320 mm.,
- rotation speed shaft 3000 T/min,
- engine power kW 4
- 80 mm manual vertical stroke. with decimal display,
- horizontal manual stroke 70 mm. with decimal display

Trolley of the tenonner :
- Reclining cast iron table,/- 45° of 350X900mm with stretch guide of 3000mm

Manual progress
- pneumatic presser for locking the part
- stretchy aluminum guide with millimeter rod and stops ofreference to 3 programmable positions

- Protection booth for working groups
