Comac EBC 68

Used, functionally tested and operating

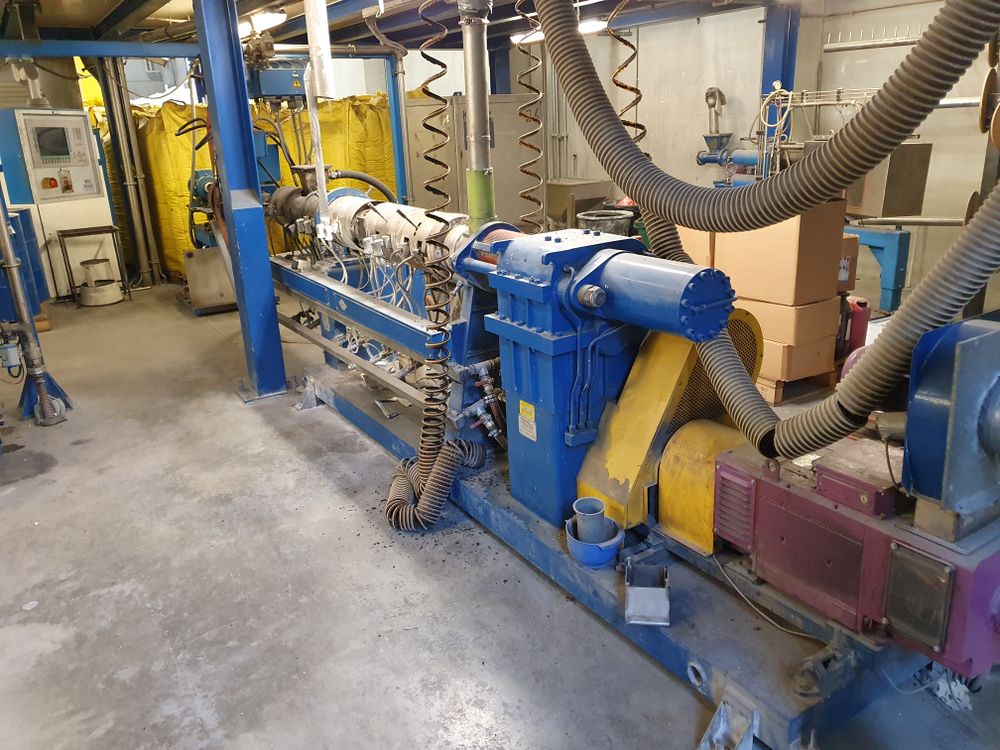

compounding-pelletizing line, equipped with :
Extruder twin-screw COMAC Type EBC 68 with Motor 110 kW-DC
screws 2x Ø 68 mm – 40 L/D co-rotating intermeshing
Segmented screws & cylinders, Water / Medium cooled**
1x venting port **
1x side feeder screws 2x Ø 52 mm

Melt-filter 2 piston Type K-SWE 160 incl. Hydraulic-pack

BKG underwater-pelletizing unit Type AH 2000, complete with:
diverter-valve / Hydraulic
pelletizer with motor 4 kW incl. die-plate and knfife-holder
Water – Box TWS volume 900 liter, heating power 40 kW Installed
Water pump with 11 kW, By-Pass-System
Pellet Spin-dryer TVE 2000 ED with motor 4 kW
water sieve with circulation pump 4 kW
Siemens S7 – Touch control board

Optional against additional prices.:
process water cooling unit / Temp.control unit
5-component gravimetric blender ARBO
1x side-feeding Extruder 2x Ø 52 mm, motor 1,8 kW, Screw speed up to 180 r.p.m.
vacuum-pump, die-plate / knife-holder > due to your process request
