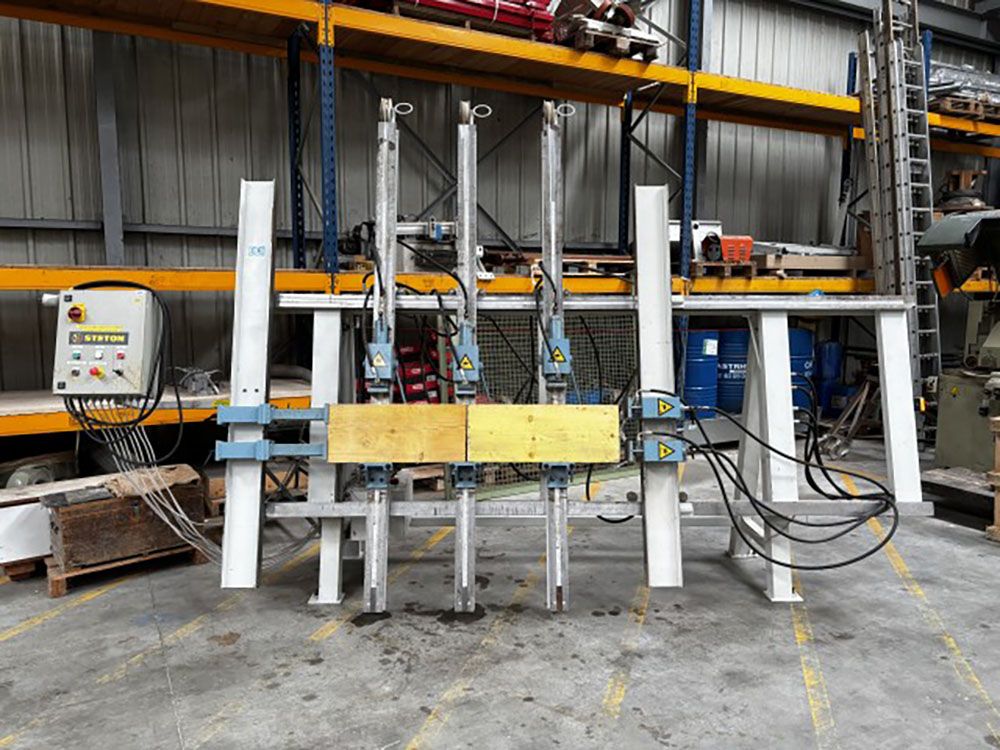

Comac, Steton C-ST

SEMI-AUTOMATIC ELECTRO-HYDRAULIC 3-BEAM FRAMING MACHINE
CAPACITIES:
- Maximum usable dimensions (WxH) 3000 x 1950 mm
- Depth (thickness) of wood in contact with the support 100 mm
- Vertical cylinder stroke 100 mm
Maximum thrust per cylinder 80 kg/cm²
- Horizontal cylinder stroke 150 mm

MACHINE COMPOSITION:
- 1 fixed beam with 2 height-adjustable stops
Usable dimensions of fixed support (from the shoes to the left) 105 x 100 mm, 2 removable 30 cm extensions
- 4 sliding beams with double guides:
3 movable beams with manual locking and double-acting vertical cylinders
Positioning sliders, Counterweight system: springs
Support dimensions (shoes at the top) 110x100 mm
Useful support dimensions (shoes at the bottom) 160x100 mm, 3 positions
1 beam (on the right) with 2 horizontal cylinders, locking on a rack
Horizontal support dimensions (shoes on the right): 115x100 mm
Positioning slider
- Lever controls

FEATURES:
- Robust, mechanically welded frame with an inclined plane
- Complete electrical cabinet with all controls
- 400V power supply Three-phase 50Hz
- 2.2 kW (3 hp) hydraulic pump motor
- CE marked, lockable disconnect switch, emergency stop

Dimensions in operating order: 4400 x 1000 x H. 2700 mm
Clearance required ALL around the machine for movement and work: 60 cm
Dimensions for transport (LxWxH): 4.50 x 1.20 x H. 2.70 m
Weight: 1700 kg
