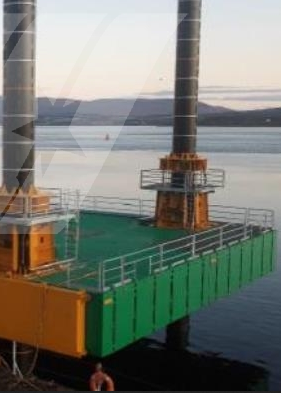

Combifloat 31m Jack Up Platform

Length overall (LOA): 30.5 m
Beam: 18.3 m
Depth: 2.13 m
Free deck area: 520 m²
Variable deck load: 400 mT
Deck strength: 15 mT/m²

Jacking system: Hydraulic / mechanical engaged
Jacking speed: 12 m/hr (full cycle)
Jacking stroke: 1.22 m
Jacking capacity: 300 mT per leg
Power: 240 kW (2 diesel-hydraulic pump sets)

Spud legs: 4 units
Leg length: 38.5 m (extendable)
Free length below hull: 32 m
Leg diameter: 1.22 m

Maximum wave height (operation): 3 m
Maximum wave height (survival): 5 m
Maximum wind speed: 50 km/h
Current: 1 m/s

Hydraulic system operating pressure: up to 250 bar
Modular platform design
Central control system (PLC)
Diesel-hydraulic redundant power packs
Spud wells system
Offshore containerized power unit
Optional configuration equipment available
Classification: Bureau Veritas
