Comexi FP 1808 8 820mm

Number of Colors: 8 Colors
Film Width: 860mm
Printing Width (Net): 820mm
Print Repeat: 300-650mm
Bobbin Diameter (Wind Front and Back): 800mm / 500 Kg (Max.)
Maximum Speed: 250 m/min
Drying: Gas
Printing Feature

OPP, PE, Aluminum Foil, Paper
10µm (Aluminum) – 300µm

Bobbin: 4 Pieces 76mm / 4 Pieces 152 mm
Bobbin Changing (Wind/Warp): Automatic Bobbin Changing
Edge Control (Wind/Warp): BST EKR 1000 (2 Pieces)
Sleeve: 302 Pieces Sleeve
Anilox: 19 Pieces
Corona: Softal 7040
Viscosity Control: 8 Colors INELME FC/MIC-1 Viscosity Control
Other Features:

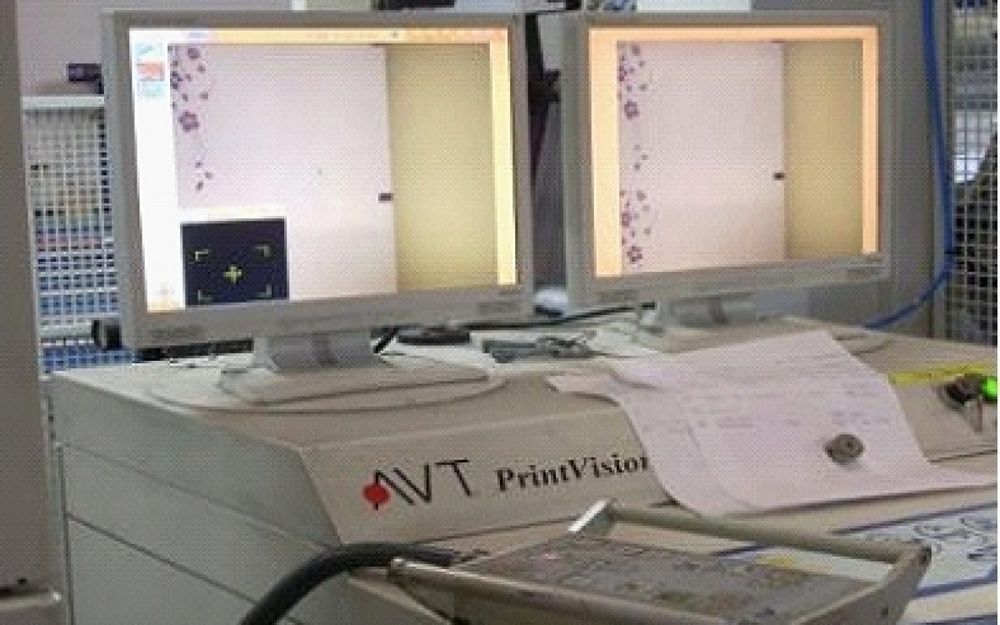

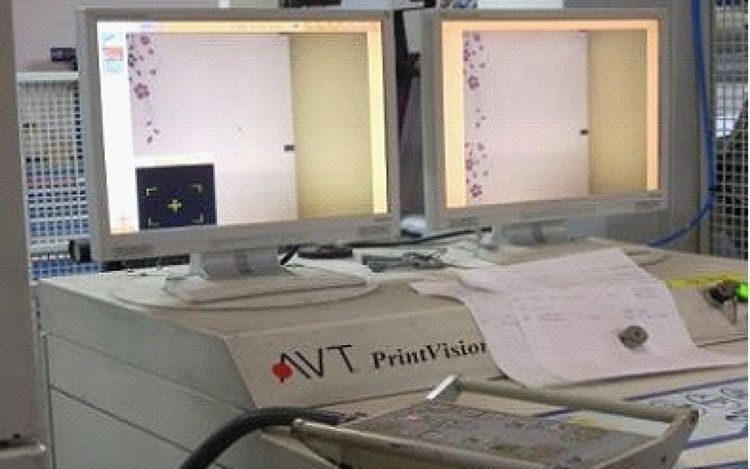

AVT Print Vision Jupiter Printing Video Control
8 Pieces + 2 Pieces of Spare Ink Pumps
8 Pieces of Doctor Blade
Mobile Operator Control Panel

Connections:
7 ATU / 170 lt / min Air Connection
3 * 380 V 50Hz – 150 kW Consumption
2 Kg/cm2 Water Connection (18°C)*
Air circulation: 4200 + 5000 m3 / hour
Ventilation Discharge: 2300 m3 / hour
Dimensions: 12m * 6.00 m * 5.10 (Length * Width * Height)
Weight: 45.000 Kg
English / German Manuals and Technical Manual
*The Chiller Unit is also subject to negotiation.
