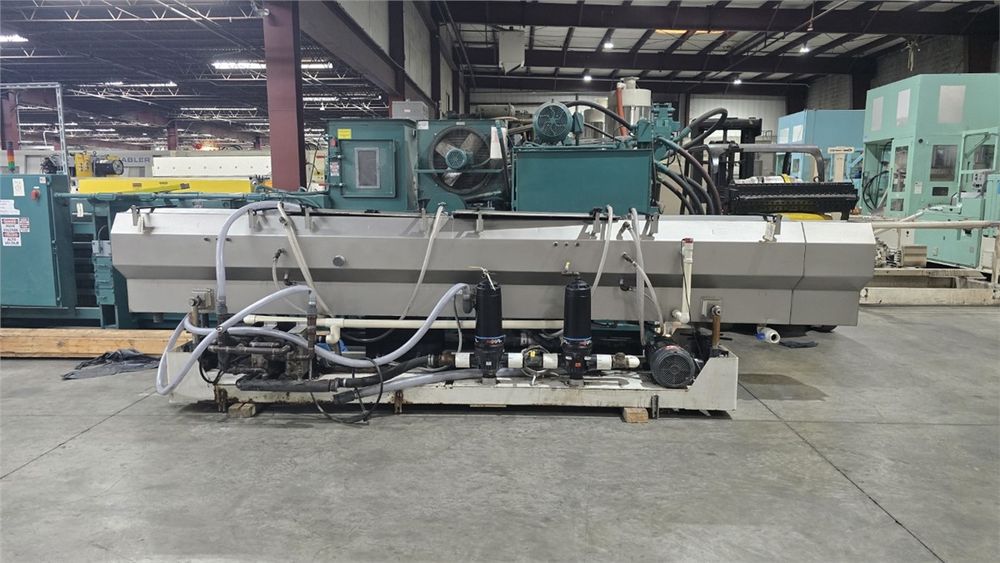

Conair MSBHI-16-12 Vacuum & Spray Cooling Tank

16' Conair Vacuum & Spray Cooling Tank Model MSBHI-16-12
Integrated Stainless Steel High-Intensity Spray Tank With Built-In Water Reservoir16' Long Tank
12" Useable Cross-Section Width
Centerline Height: 39" Adjustable ±3"
Water Requirement: 100 GPM Through 1" NPT Main Supply
Operating Spray Pressure: 30–45 PSI @ Nozzles For
Full 360° Coverage
Stainless Steel Construction W/ Electronic Level Control And Solenoid Fill Valve
Integrated Water Manifold W/ Individual Ball Valves For Zonal Cooling
Screw Jack Tank Rise W/ Manual Height Adjustment
Motorized Forward / Reverse Travel Via Gearbox And
Feed Screw Actuator
High-Intensity Multi-Row Spray Bar Assembly For Single-Pass Cooling
Turbo Disc Filter And Basket Strainer System For Water Filtration
Integral Reservoir W/ Automatic Fill Control
Roller Rack Assembly For Solid Profiles Up To 12" Wide Or
Pipe Up To 12" Diameter
7.5 HP U.S. Electrical Motors UNIMOUNT 125, Model B077A
460/3/60, 9.6A
Frame: 213JM, 3510 RPM
Approximate Dimensions: 17' L x 53" W x 60" H
