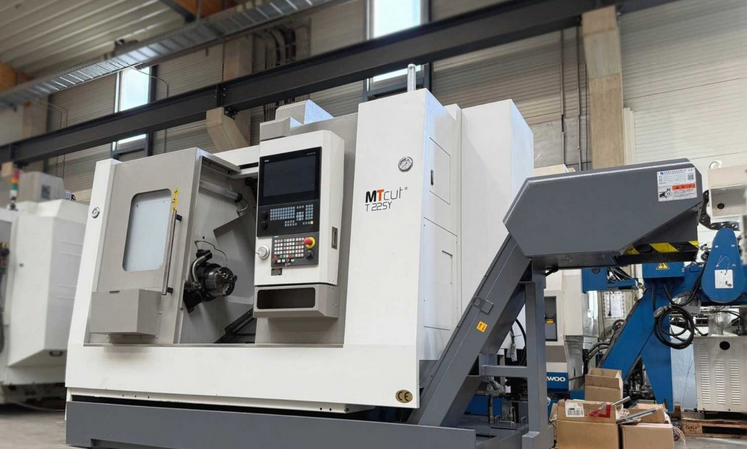

Control Siemens Sinumerik 828D 4500 rpm MTEvo T22SY 3 Axis

Ref : 2740751-3-AW

Condition : Used

Manufacturer : -

Controller : Control Siemens Sinumerik 828D

Spindle Speed : 4500 rpm

Model : MTEvo T22SY

Nb Of Axis : 3 Axis

Year(s) : 2021

Quantity : 1

Location : Seller or machines location:
EUROPE (Western and Northern)

Travel X axis 200 mm
Travel Z axis 560 mm
Travel Y axis 110 mm (+/- 55 mm)

Maximum swing diameter over bed 620 mm
Maximum turning diameter 270 mm
Maximum turning length 510 mm
Spindle bore 62 mm
Main spindle speed 4500 rpm
Main chuck diameter 200 mm
Sub spindle speed 6000 rpm
Sub chuck diameter 150 mm
Turret tools 16
Tool taper BMT 45

Features/Options/Equipment
Turret for driven tools
Y axis
Sub spindle
7 static holders
1 vertical driven tool
1 horizontal driven tool
