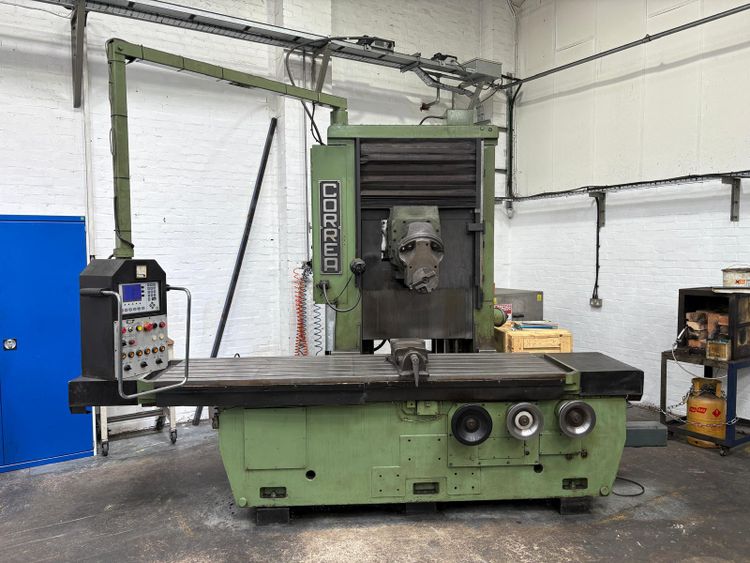

Correa A-20-25 Bed Type Travelling Table Universal Milling Machine 2000 RPM (18 Steps)
Ref :
2740830-3-MT
Condition :
Used
Manufacturer :
Correa
Model :
A-20-25 Bed Type Travelling Table Universal Milling Machine
Spindle Speed :
2000 RPM (18 Steps)
Year(s) :
-
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
Table Size: 2500 × 700 mm
X-Axis Travel: 2200 mm
Y-Axis Travel: 1000 mm
Z-Axis Travel: 1000 mm
Spindle Nose to Table: 50 – 1050 mm
Spindle Centerline to Table Height: 88 – 1389 mm
Spindle Speeds: 40 – 2000 RPM (18 Steps)
Spindle Taper: ISO 50
Feed Range: 5 – 1500 mm/min (Infinitely Variable)
Rapid Traverse: 3000 mm/min
Spindle Motor: 15 kW
Machine Weight: 9500 kg
Pendant Control
D.R.O.
Universal Angular Double Swivel Milling Head
Hydraulic Speed Change
Ball Screws for Longitudinal, Cross, and Vertical Axes
Dual Controls for Manual Operation
Tooling Included
