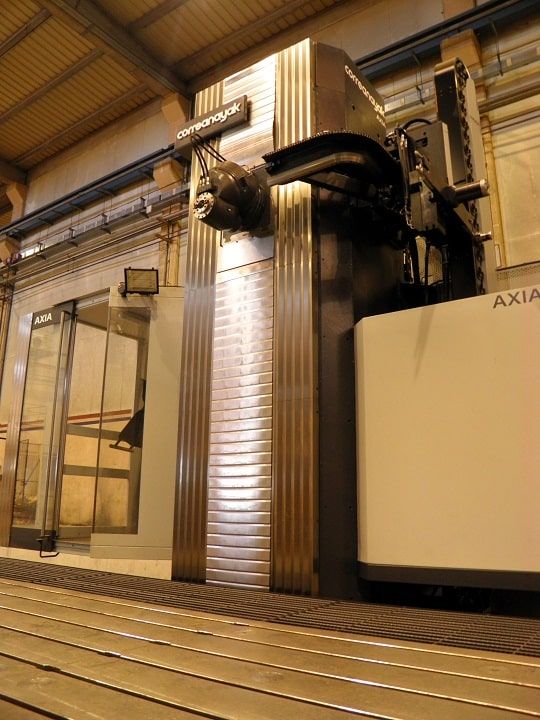

Correa AXIA 115 3000 rpm

X axis traverse: 11500 mm
Y axis traverse: 1500 mm
Z axis traverse: 2000 mm
Vertical capacity: 150 / 2150 mm
Head type: Universal auto-indexing UDG (2.5º)
Tool clamping system: Hydraulic
Taper nose: ISO 50 (DIN 69871)
Pull stud: DIN 69872
Speed range: 3000 rpm
Spindle power: 30 kW
Rapid feedrate (X / Y-Z): 30000 mm/min
Table dimensions: 12500 × 2250 mm
Number of T-slots: 9
T-slot dimensions: 22 mm
Maximum weight on table: 15 T/m²
Machine weight: 62000 kg
Machine dimensions: 18494 × 8412 × 5290 mm
Numerical control: HEIDENHAIN TNC-i530
Automatic milling head
Automatic tool changer ATC40
Chip conveyor (longitudinal rear hinge type)
Front doors guarding
Safety mesh fence
External coolant
High-pressure coolant through spindle
Electronic handwheel HR-410
