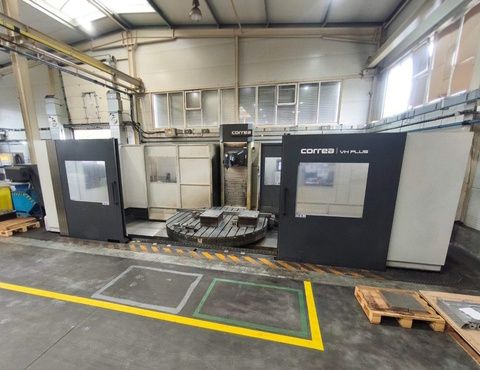

Correa VH-PLUS-4000-MGM 6000 rpm

X-Axis Travel: 4000 mm
Y-Axis Travel: 1500 mm
Z-Axis Travel: 1500 mm
B-Axis Rotary Table: 360° / 0.001°
Control: Heidenhain TNC 640
Rotary Table Size: 3000 × 3000 mm
Maximum Table Load: 20000 kg
Rapid Traverse X/Y/Z: 25000 mm/min
Spindle Speed: 6000 rpm
Spindle Motor Power: 37 kW
Spindle Taper: ISO 50
Automatic Gear Stages: 2
Maximum Spindle Torque: 1300 Nm
Orthogonal Milling Head C-Axis: ±360° / 0.02°
Orthogonal Milling Head B-Axis: ±135° / 0.02°
Programmable Head Positions: 324000
Tool Holder: ISO 50
Tool Capacity: 60
Maximum Tool Weight: 15 kg
Machine Weight: 50000 kg
NC Rotary Table
Orthogonal Milling Head
Heidenhain Linear Scales on X, Y, Z
Heidenhain HR-550 FS Wireless Electronic Handwheel
Renishaw RTS/C Tool Measurement Probe
Renishaw RMP60-Q Workpiece Probe
2 Chip Conveyors
500 L Coolant Tank
Coolant Filter
External Coolant: 17 bar
Through-Spindle Coolant: 17 bar
Splash Guards
Telediagnosis
Tool Holders Included
Clamping Devices Included
Condition: Very Good
Cutting Hours: Approx. 17000
