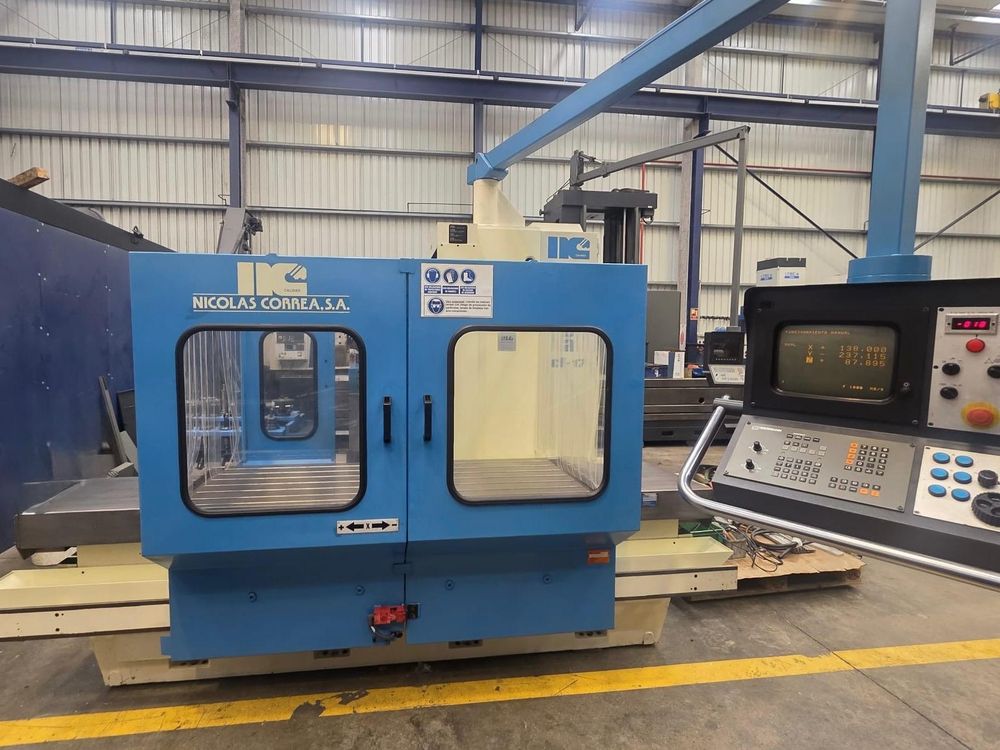

Correa CF-17 Vertical 2,750 rpm
Ref :
2746141-3-MT
Condition :
Used
Manufacturer :
Correa
Model :
CF-17
Type :
Vertical
Spindle Speed :
2,750 rpm
Year(s) :
-
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
X Axis Travel 2,000 mm
Y Axis Travel 800 mm
Z Axis Travel 800 mm
Rapid Traverse 12,000 mm/min
Control HEIDENHAIN 360
Table Size 2,000 x 700 mm
Number of T-Slots 5 x 22
Distance Between T-Slots 125 mm
Spindle Nose ISO 50
Diameter of Front Bearing 85 mm
Spindle Speed 20–2,750 rpm
Spindle Power 17 kW
Max. Weight on Table 3,500 kg
Machine Weight 9,000 kg
