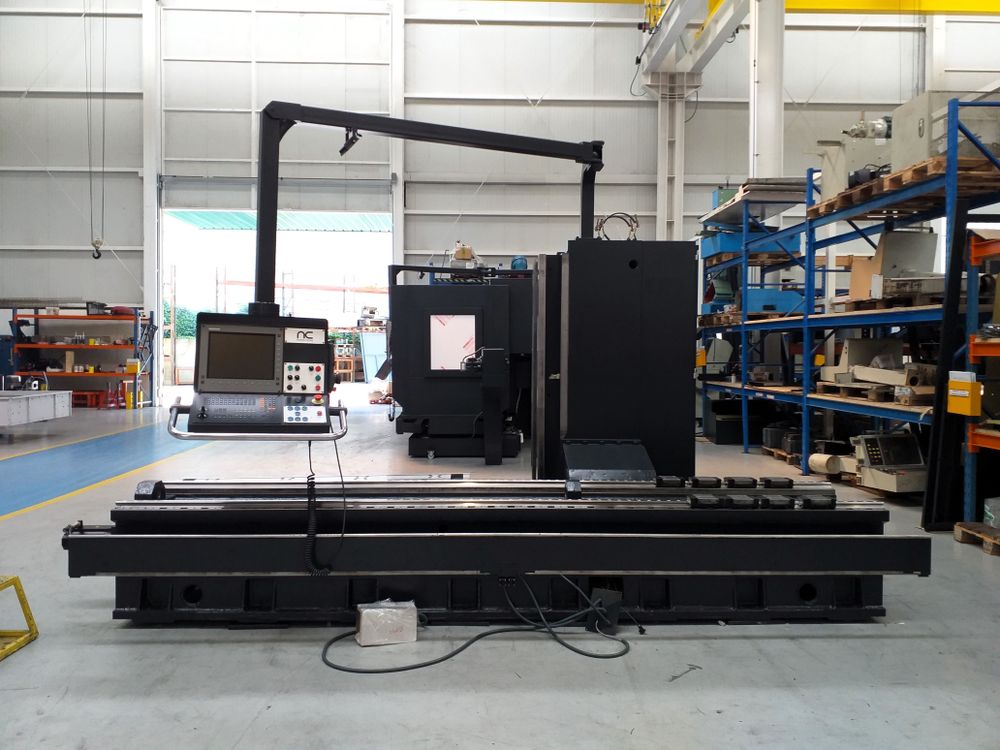

Correa PRISMA 20 Vertical 3000 rpm
Ref :
2758657-3-MT
Condition :
Used
Manufacturer :
Correa
Model :
PRISMA 20
Type :
Vertical
Spindle Speed :
3000 rpm
Year(s) :
2004
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
Retrofitted: 2025
Bed type milling machine
CNC HEIDENHAIN TNC-i530
Manual milling head U22
Table dimensions 2000 x 900 mm
Number of T slots 5
T slot dimensions 22 mm
X axis traverse 2000 mm
Y axis traverse 1000 mm
Z axis traverse 1000 mm
Tool clamping system Hydraulic
Taper nose ISO 50 (DIN 69871) / Pull stud DIN 69872
Spindle speed range 3000 rpm
Spindle power 22 kW
Working feedrate 12000 mm/min
Rapid feedrate (X-Y-Z) 20000 mm/min
Maximum weight on table 3500 kg
Machine weight approx. 14000 kg
Machine dimensions approx. 6637 x 5070 x 2803 mm
External coolant
Electronic handwheel HR-410
New foot clamping tool pedal
Guarding and new perimetral safety fence installation
