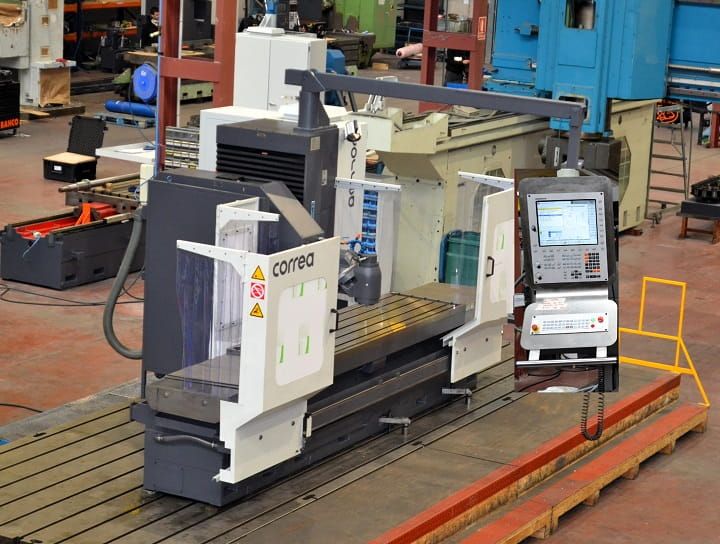

Correa CF22/20 Vertical 3000 rpm
Ref :
2811465-3-CP
Condition :
Used
Manufacturer :
Correa
Model :
CF22/20
Type :
Vertical
Spindle Speed :
3000 rpm
Year(s) :
1998
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
Retrofitted: 2026
Feedrate: 5–5000 mm/min
Rapid traverse (X/Y/Z): 12000 mm/min
X-axis travel: 2000 mm
Y-axis travel: 800 mm
Z-axis travel: 800 mm
Vertical capacity: 22–822 mm
Control: HEIDENHAIN TNC-i320
Bed type CNC milling machine
U22 manual universal milling head
Hydraulic tool clamping
External coolant
Electronic handwheel: HR-510
Automatic tool changer: 20 tools, random type
Table size: 2000 × 700 mm
T-slots: 5
T-slot width: 22 mm
Spindle speed: 20–3000 rpm
Spindle power: 22 kW
Spindle taper: ISO 50 (DIN 69871)
Pull stud: DIN 69872
Maximum table load: 3500 kg
Machine weight: 9000 kg
Machine dimensions: 5265 × 2900 × 2760 mm
2 sliding doors
Perimeter wire-mesh safety fence
