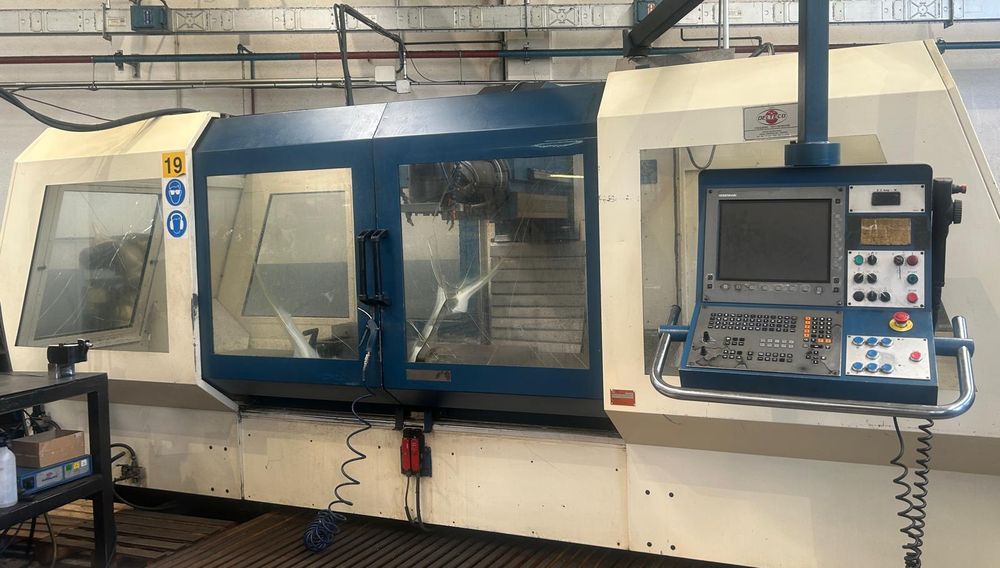

Correa CF-22 PLUS 4000 rpm

Ref : 2755110-3-MT

Condition : Used

Manufacturer : Correa

Model : CF-22 PLUS

Spindle Speed : 4000 rpm

Year(s) : -

Quantity : 1

Location : Seller or machines location:
EUROPE (Western and Northern)

Travel X-axis 2000 mm
Travel Y-axis 800 mm
Travel Z-axis 800 mm
Control Heidenhain 530
Table size 2500 × 700 mm
Number of T-slots 5
T-slot width 22 mm
Head type Universal manual
Tool clamping Hydraulic
Spindle taper ISO 50 (DIN 69871)
Spindle speed 4000 rpm
Spindle power 22 kW
Rapid feed 12000 mm/min
Max table load 4000 kg
Machine dimensions 6605 × 3315 × 2730 mm
Machine weight 10000 kg
Fairing
Chip conveyor
Electronic handwheel
