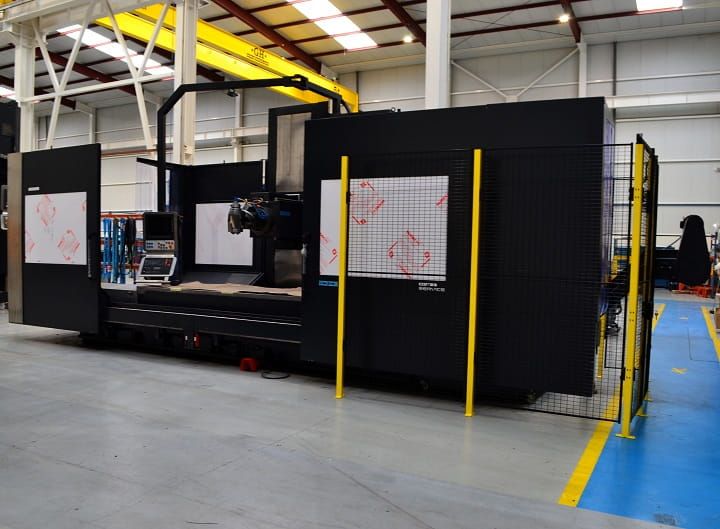

Correa CF25/25 3000 rpm

REFURBISHMENT ONGOING
X axis travel: 2500 mm
Y axis travel: 1000 mm
Z axis travel: 1500 mm
Vertical capacity: 96–1596 mm
Rapid feedrates (X-Y-Z): 20000 mm/min
Feedrates: 5000 mm/min

Control system: HEIDENHAIN TNC-530
Head type: Universal manual (U22)
Optional head: Auto-indexing UDG head (2.5° steps)
Tool clamping system: Hydraulic
Spindle taper: ISO 50 (DIN 69871)
Pull stud standard: DIN 69872
Spindle speed range: 20–3000 rpm
Spindle power: 22 kW
Automatic tool changer: ATC 30 (new)
Chip conveyor: Rear longitudinal
Coolant system: External and internal high-pressure through spindle
Electronic handwheel: HR-410
Table size: 2800 x 1000 mm
T-slots: 5
T-slot size: 22 mm
Maximum table load: 6000 kg
Machine weight: approx. 23000 kg
Machine dimensions: 7750 x 4400 x 3500 mm
