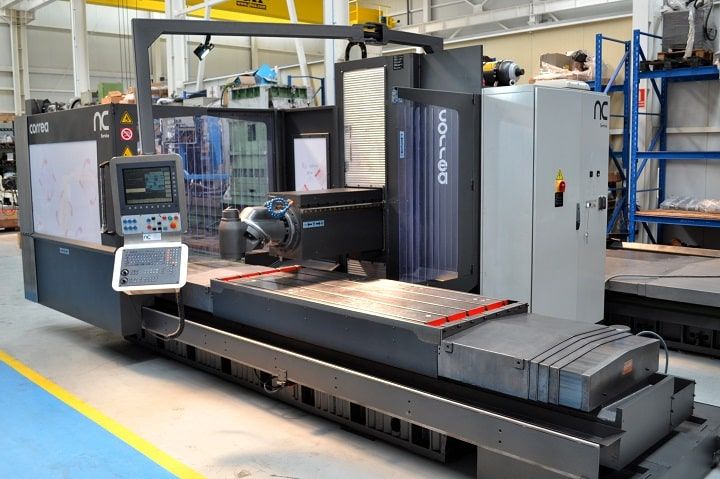

Correa DIANA 20 3000 rpm

Correa DIANA 20
Year of manufacture: 2011
Retrofitted: 2025
Numerical control: HEIDENHAIN TNC-i530


Dimensions
Table dimensions: 2300 x 900 mm
Number of T slots: 5
T slots dimensions: 22 mm

Traverses of axis
X axis traverse: 2000 mm
Y axis traverse: 1000 mm
Z axis traverse: 1000 mm

Milling head
Head type: Manual milling head (U22)
Tool clamping system: Hydraulic
Taper nose: ISO 50 (DIN 69871) / Pull stud: DIN 69872
Speed range: 3000 rpm
Spindle power: 22 kW

Feedrates
Rapid feedrate (X-Y-Z): 20000 mm/min

Weight and dimensions
Maximum weight on table: 3500 kg
Machine weight approx.: 14000 kg
Machine dimensions approx.: 6114 x 5070 x 2803 mm

Accesories
External coolant
Electronic handwheel: HR-410
New foot clamping tool pedal
Guarding and new perimetral safety fence installation
