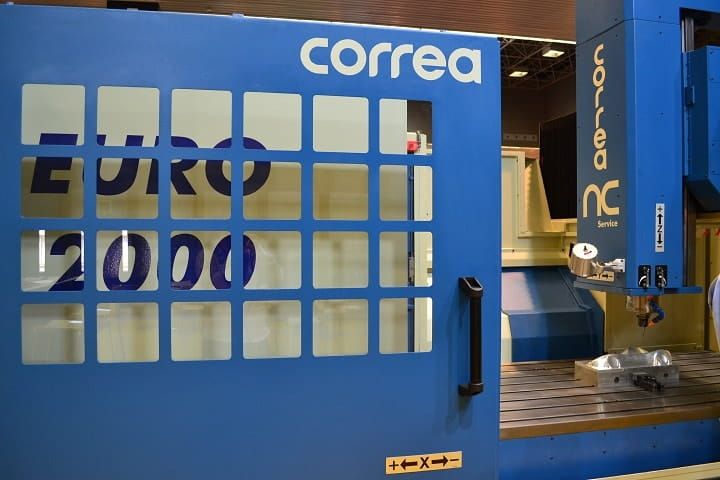

Correa EURO2000 3 Axis

Feedrate (Rapid X/Y/Z): 20,000 mm/min
X axis travel: 2,000 mm
Y axis travel: 1,250 mm
Z axis travel: 650 mm
Vertical capacity: 150–800 mm
Distance between columns: 1,250 mm
Control: HEIDENHAIN TNC-i530
Automatic tool changer: 24 tools (ATC-24)
Linear recirculating bearings on X, Y and Z axes
External high-pressure coolant
Internal high-pressure through-spindle coolant
Perimeter guarding
Electronic handwheel: HR-410
Table size: 2,000 × 1,000 mm
T-slots: 8
T-slot size: 22 mm
Spindle: Kessler electrospindle
Spindle speed: 20–12,000 rpm
Spindle power: 25 kW
Tool clamping: Hydraulic
Spindle taper: HSK-63
Maximum table load: 5,000 kg
Machine weight: Approx. 14,000 kg
Machine dimensions: Approx. 6,500 × 3,934 × 4,000 mm
2 longitudinal chip conveyors
1 transverse hinge-type chip conveyor
Mechanical refurbishment completed
Warranty: 6 months mechanical spare parts
