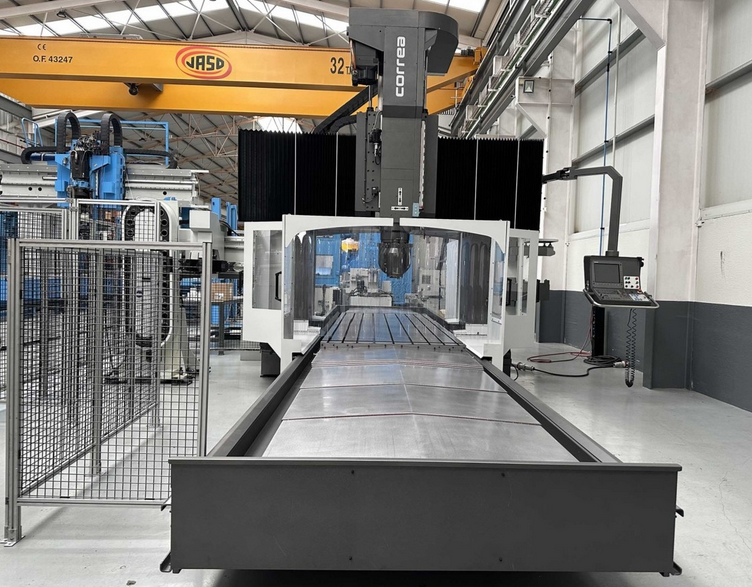

Correa FP 35 5000 rpm

X-axis travel: 3500 mm
Y-axis travel: 2600 mm
Z-axis travel: 1000 mm

Rapid traverse X-axis: 15000 mm/min
Rapid traverse Y-axis: 12000 mm/min
Rapid traverse Z-axis: 12000 mm/min

Feedrate: 5000 mm/min
CNC control: Heidenhain iTNC 530
Electronic handwheel: Heidenhain HR 410
Table size: 4500 × 1500 mm
Distance between columns: 2300 mm
Spindle taper: ISO 50
Spindle speed range: up to 5000 rpm
Swivel milling head speed: up to 3000 rpm
Swivel milling head angle: 45°
Spindle motor power: 22 kW
Transmission ratio: 2
Tool changer capacity: 30 tools
Table load capacity: 15000 kg
Compressed air requirement: 6 bar
Total power requirement: 44 kW
Machine weight: approx. 25 t
Auto indexing head: 2.5° / 5°
Automatic head changer
Automatic tool changer
Automatic right-side support for milling head
Direct output head
