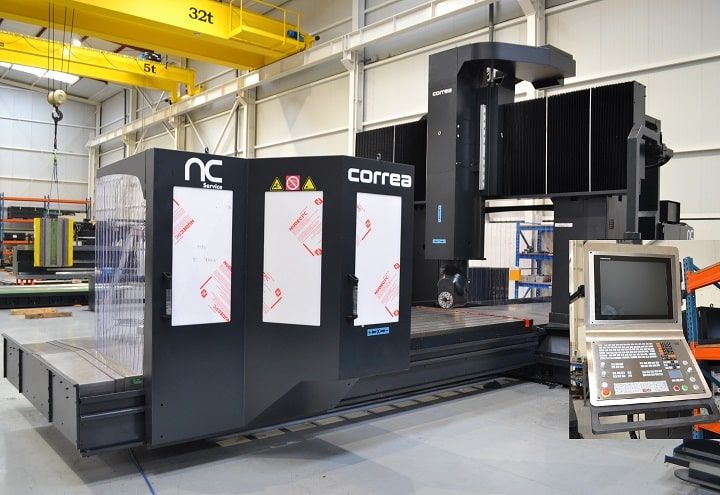

Correa FP40/40 6000 rpm

Retrofitted: 2025

X axis travel: 4000 mm
Y axis travel: 3000 mm
Z axis travel: 1000 mm
Vertical capacity: 240–1240 mm
Distance between columns: 2500 mm
Control: HEIDENHAIN TNC-i640
Table dimensions: 4500 x 2000 mm
Number of T slots: 11
T slot dimensions: 22 mm
Auto-indexing differential head UAD 0.1°
Tool clamping system: Hydraulic
Taper nose: ISO50
Spindle speed: 6000 rpm
Spindle power: 30 kW
Feedrate: 5000 mm/min
Rapid feedrate (X): 15000 mm/min
Rapid feedrate (Y/Z): 12000 mm/min
Maximum weight on table: 10000 kg
Machine weight: 35500 kg
Machine dimensions: 10975 x 4770 x 5345 mm
Guarding with 2 doors and perimetral safety fence
Automatic tool changer ATC-60 (option without ATC)
Chip conveyor: transversal
Electronic handwheel: HR-510
Coolant external & internal high pressure through spindle
