1/1

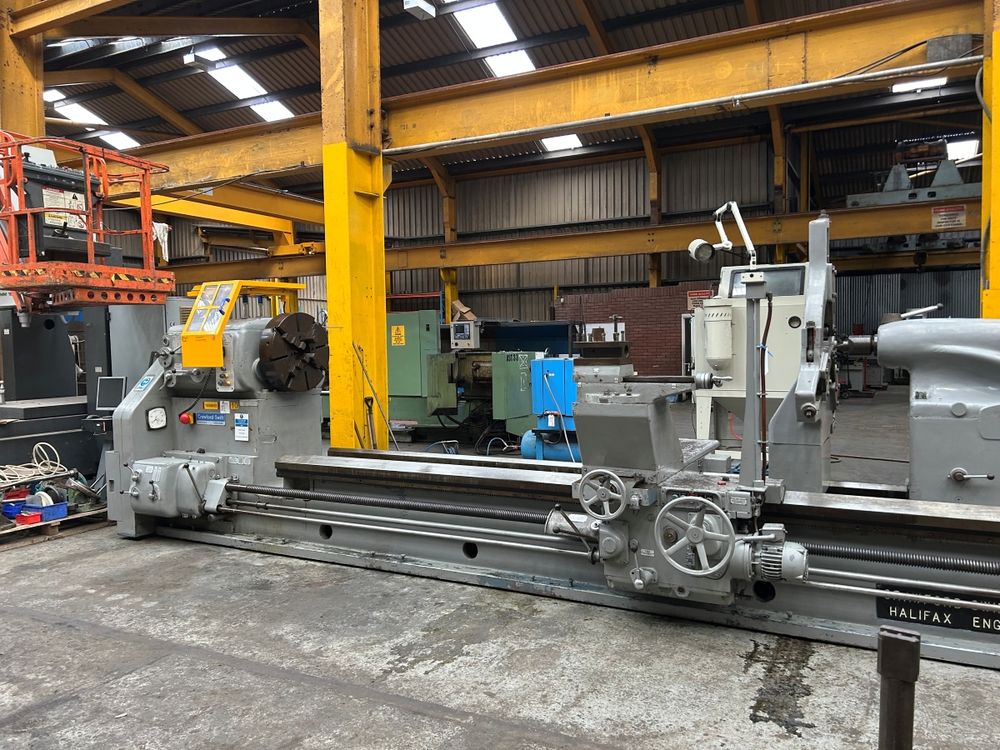

Crawford Engine Lathe 300 rpm SWIFT 19/30C
Ref :
2758435-3-AW
Condition :
Used
Manufacturer :
Crawford
Type :
Engine Lathe
Spindle Speed :
300 rpm
Model :
SWIFT 19/30C
Year(s) :
-
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
Swing Over Bed: 1560 mm
Swing Over Saddle: 1310 mm
Swing in Gap: 2160 mm
Maximum Distance Between Centres: 4040 mm
Spindle Speeds: 5–300 rpm
Feeds Sliding: 0.003–0.1" per rev
Feeds Surfacing: 0.001–0.04" per rev
Screw Cutting (TPI): 1–80
Screw Cutting (Metric): 1–12 mm pitch
Motor Power: 18.5 kW
Electrics: 415 V, 3 Ph, 50 Hz
4 Jaw Chuck: 635 mm
Fixed Steady: 470 mm
4 Way Tool Post
Rapid Power Traverse
Feed to Compound Slide
Work Light
Spindle Brake
Interlocked Sliding Chuck Guard
Approx. Dimensions: 7200 x 2050 x 2100 mm
Approx. Weight: 10,000 kg
