Crawford Swift CENTRES GAP BED LATHE 300rpm 19/30C

Ref : 2717268-3-MT

Condition : Used

Manufacturer : Crawford Swift

Type : CENTRES GAP BED LATHE

Spindle Speed : 300rpm

Model : 19/30C

Year(s) : -

Quantity : 1

Location : Seller or machines location:
EUROPE (Western and Northern)

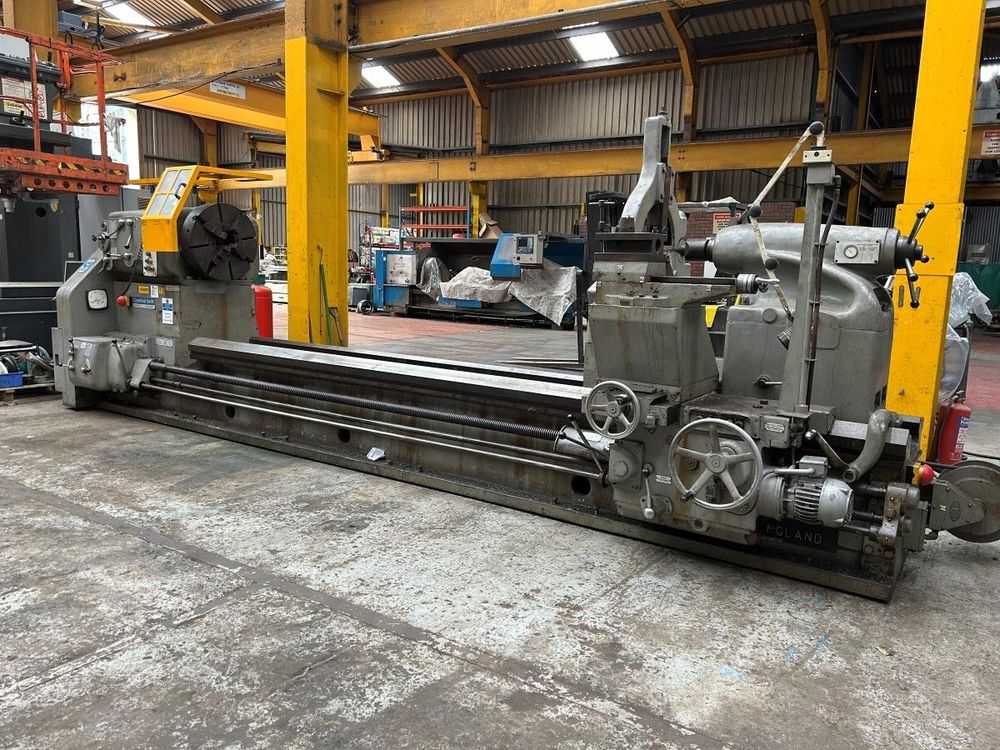

CRAWFORD SWIFT RAISED CENTRES GAP BED LATHE
Type 19/30C

Swing Over Bed 1560mm
Swing Over Saddle 1310mm
Swing in Gap 2160mm
Maximum Distance Between Centres 4040mm
Spindle Speeds 5 – 300rpm
Feeds Sliding 0.003 – 0.1” Per Rev
Surfacing 0.001 – 0.04” Per Rev
Screw Cutting: TPI 1 – 80
Metric 1 – 12mm Pitch
Motor 18.5kw, Electrics 415v, 3ph, 50 Cycles

Complete With
635mm 4 Jaw Chuck
470mm 3 Jaw Fixed Steady
4 Way Tool Post
Rapid Power Traverse
Feed to Compound Slide
Lovo Light
Spindle Brake
Interlocked Sliding Chuck Guard

Approximate Dimensions 7200 x 2050 x 2100mm
Approximate Weight 10,000kg
