Curioni 2000NT 3 1800 mm

3 Color Flexo Folder Gluer
Item Quantity Description :
- 1 Drive for Flexo Folder Gluer
- 1 Extend-o-feed lead-edge feeder
- 3 Bottom printing flexo unit
- 1 Powered slotting unit
- 1 Rotary die cutting unit
- 1 Folder-gluer
- 1 Glue extrusion unit
- 1 Rotary brush
- 1 Top loading Counter Ejector
- 1 Computer operated automation Master II

Technical Description :
- **Drive for Flexo Folder Gluer**
- Electrical cabinets
- Prewired electrical system connecting machine and cabinets
- Cable supporting bridge
- 6 m machine tracks + set of additional longitudinal rails (1.5 m)

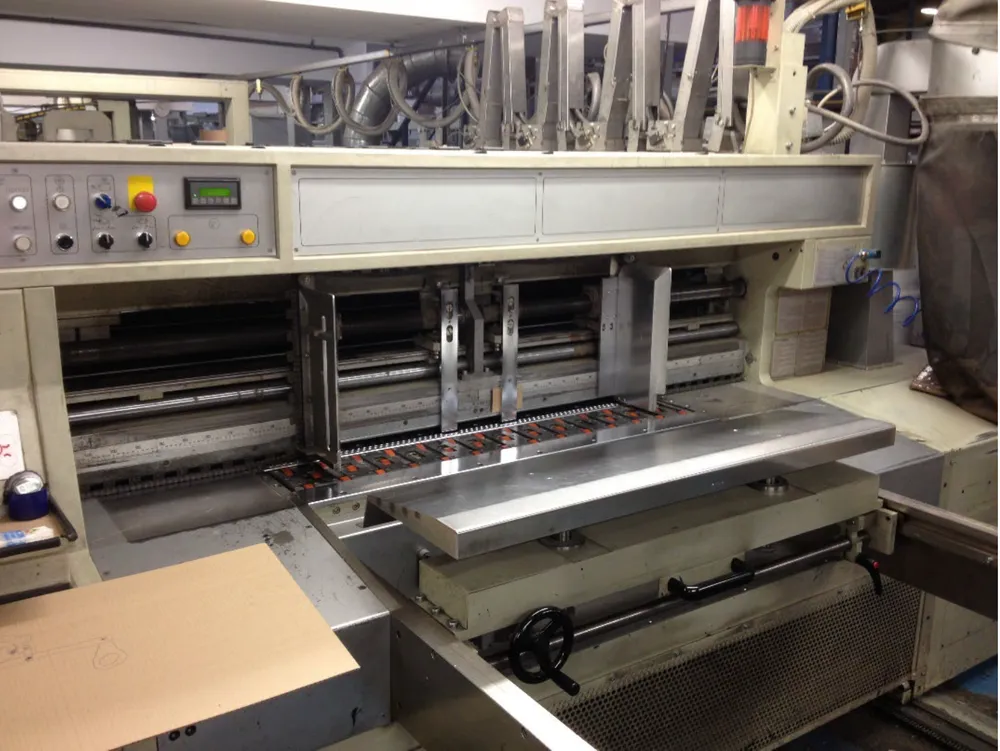

- **Extend-o-feed Lead-edge Feeder**
- Rotary motion lead edge feeder with variable stroke
- Max. sheet width: 1960 mm
- Max. sheet length: 720 mm
- Max. sheet length using skip-feed: 900 mm
- Min. sheet length: 210 mm
- Max. mechanical speed: 15,000 feeds per hour
- Max corrugated board caliper: 8 mm – Min: 2.5 mm
- Max weight per corrugated sheet: 1250 gsm
- Powered adjustment of feed rolls nip
- Manual adjustable back-stop depth and height
- Powered left and right-side guides
- Suction fan with silencer
- Pneumatic lock-up of the units
- Touch screen display of all individual section functions

- **Bottom Printing Flexo Unit**
- Chambered doctor blade inking system
- Powered print registration
- Powered lateral print cylinder adjustment
- Auto zero setting
- Powered adjustment for print impression
- Automatic sequential engagement and drop-off of anilox roll from printing cylinder when sheets are not being fed, idling rotation, and when machine is non-operational
- Matthews fast lock system
- CLIK-CLAK upper and lower quick positioning pull rolls
- Chromed cylinders and shafts
- Wash-up with water spray system when equipped with doctor roll
- Wash while run capability
- Touch screen display of all individual section functions
- Max. printing width: 1800 mm
- Printing cylinder repeat (with plate): 812 mm
- Installed power: 1.5 kW
- Ceramic anilox roll with laser engraved ceramic

- **Powered Slotting Unit**
- Set of 3 pairs of tools capable of pre-creasing, creasing, and slotting
- Powered register set-up
- Powered set-up of slotting heads, pre-creasers, and creasers
- Powered nip of slotting heads
- Powered and independent nip of creasers and pre-creasers
- Chromed cylinders and shafts
- Touch screen display of all individual section functions
- Max open box width: 1950 mm (glue flap included)
- Min panel size: 80 mm x 80 mm
- Max panel size: 870 mm
- Max glue flap width: 50 mm
- Total length of blades for each slot: 350 mm
- Blade thickness: 8 mm
- Installed power: 3.5 kW

- **Rotary Die Cutting Unit**
- Composed of upper die cylinder and lower urethane anvil
- Pull collars fitted onto a pair of shafts at machine inlet
- Constant oscillation of anvil and geared hunting ratio to distribute anvil wear
- Powered adjustment of nip, register set-up and lateral set-up of die cylinder
- Auto zero device to move the die holding cylinder to a predetermined reference position
- Chromed cylinders and shafts
- Belt conveyor for scrap discharge
- Touch screen display of all individual section functions
- Max die cutting width: 1810 mm
- Installed power: 1.7 kW

- **Folder-Gluer**
- Box folding and gluing unit with vacuum assisted lower belts
- Initial folding section has spring-loaded transfer belts
- Motorized support assembly for glue system
- Folding section with special design perforated belts to allow the best performance
- Blowers creating high vacuum capacity within the folding section
- Chromed shafts
- Safety guards according to CE standards
- Min panel size: 80 x 80 mm
- Max panel size: 730 mm
- Corrugated board thickness: 2.5 mm - 8 mm and max weight 1250 gsm

- **Top Loading Counter-Ejector**
- Motorized set-up of belts according to bundle height and fine adjustment by pushbuttons
- Manual adjustment of blower’s position to keep boxes closed while they pile up
- Motorized adjustment of C/E alignment to the centre of the folder
- Motorized positioning of front and side squaring according to box dimensions (pre-set on touchscreen)
- Fully operated by brushless motors, full interface with machine speed
- Touch screen display of all individual section functions
- Jam detection system
- Max. sheet throughput: 1050 mm
- Min bundle height: 100 mm
- Max bundle height: 260 mm
- Ejection cycle time: < 3.5 seconds

- **Rotary Brush**
- Powered rotary brush to remove scraps from the glue tab

- **Glue Extrusion Unit**
- VALCO contact type glue system for tab side installation, including:
- Controller MCP4
- Board guide
- Contact type model 900 electric glue valve
- Quick-release valve and bearing brackets for simple manual changeover from top-down to bottom-up gluing
- Installation materials

Specifications :
Weight : Installed power: 1.5 kW, 1.7 kW, 3.5 kW, total power depending on configuration
Dimensions :
Max. sheet width: 1960 mm
Max die cutting width: 1810 mm
