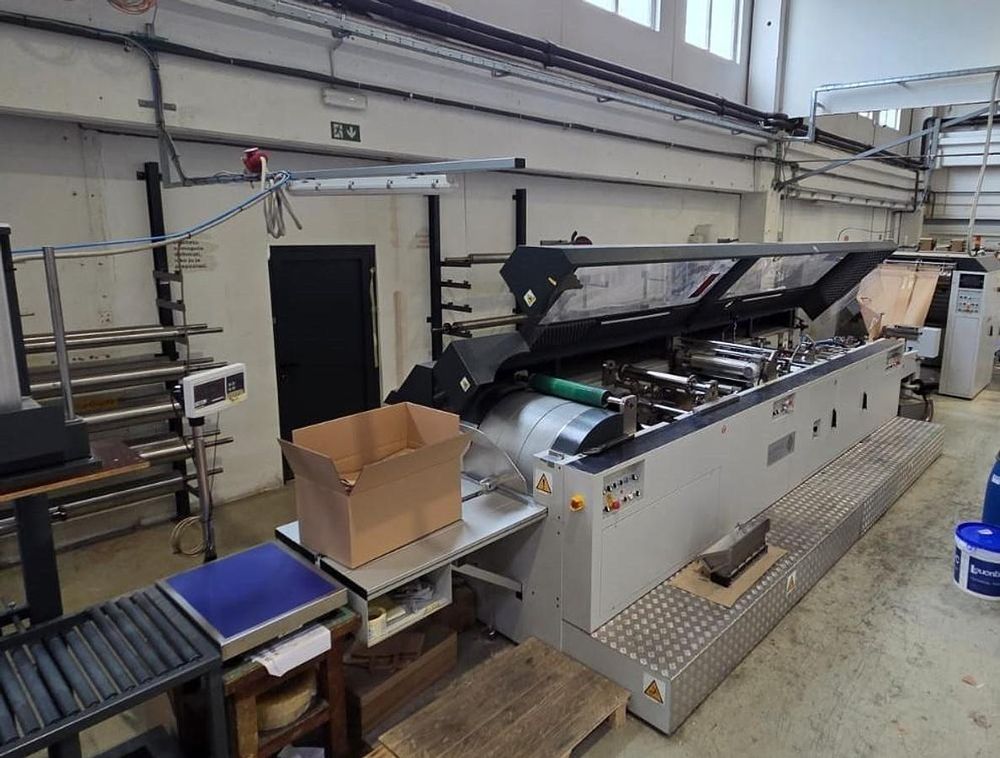

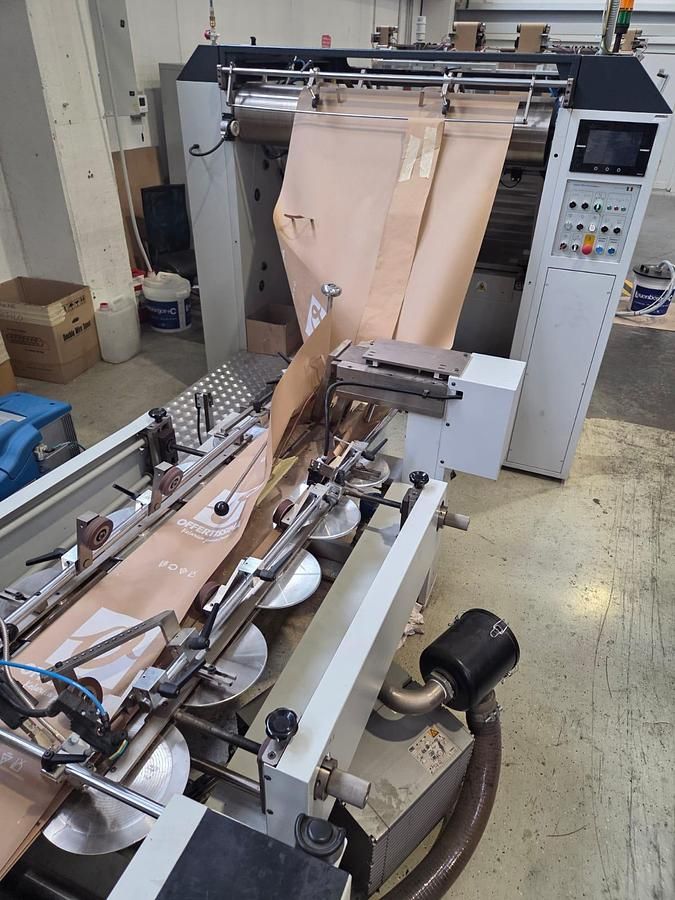

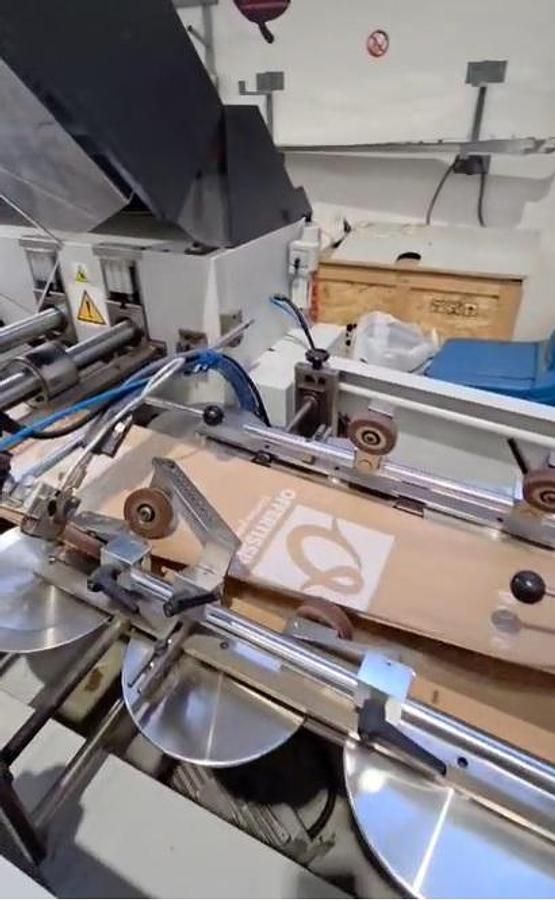

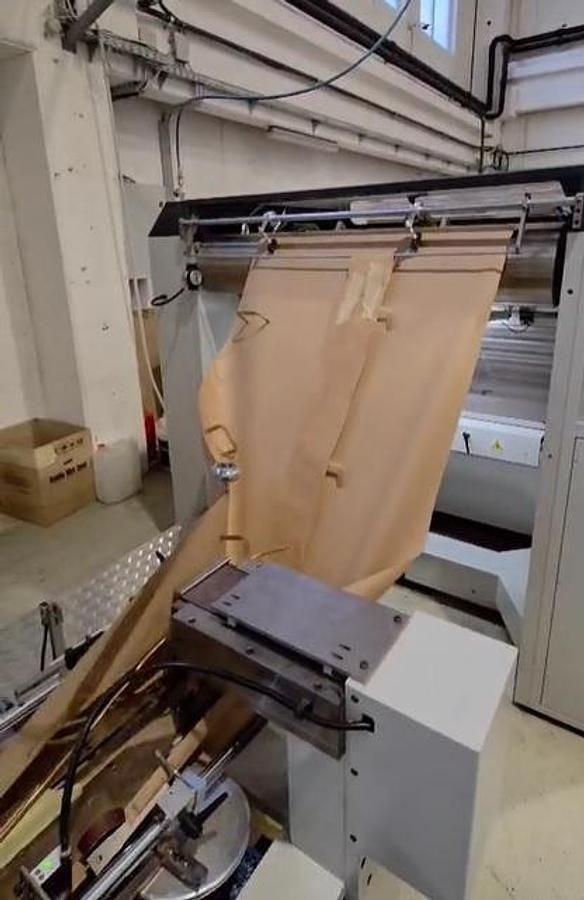

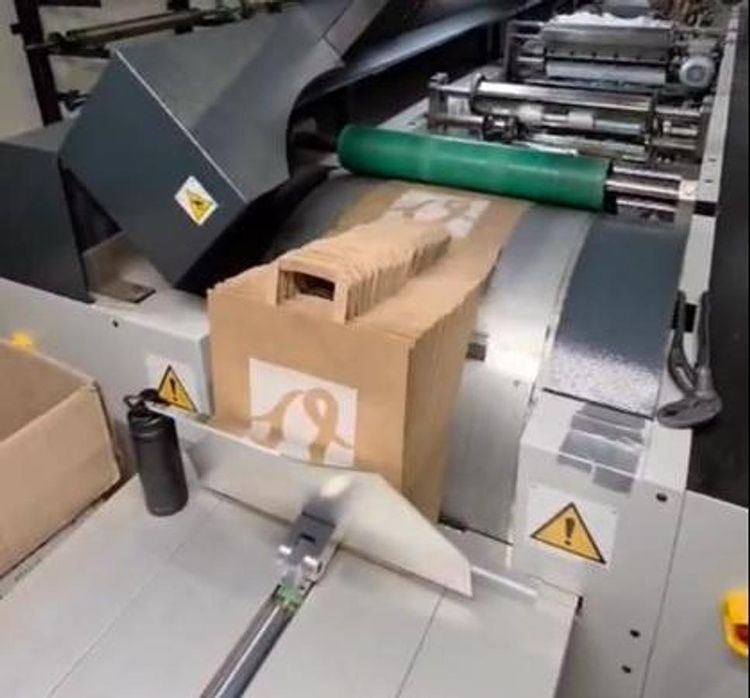

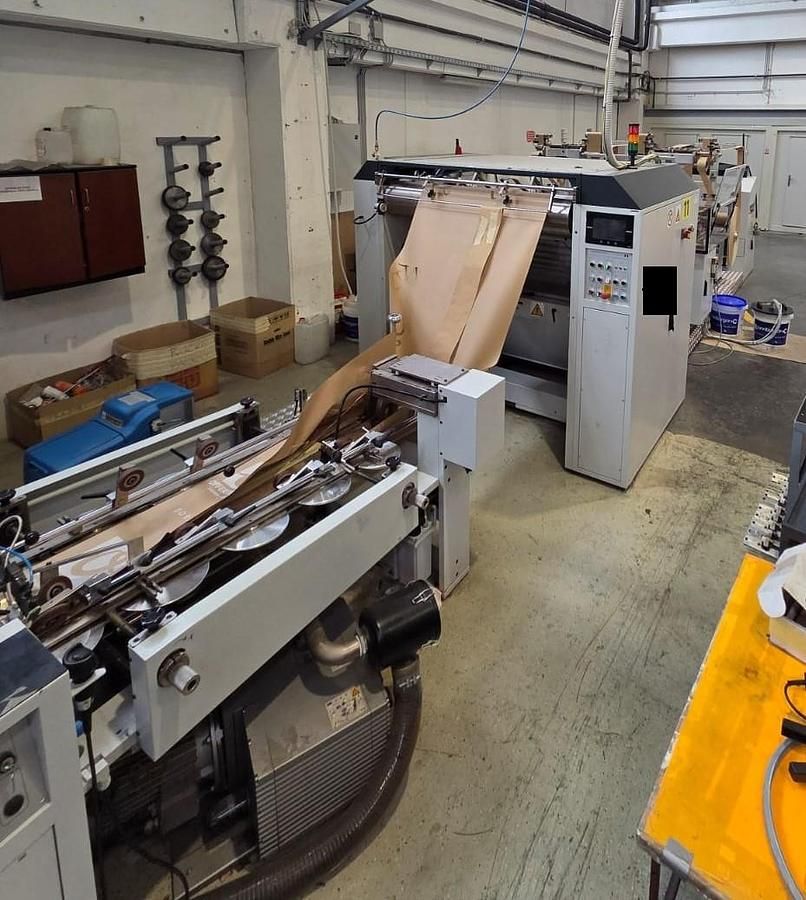

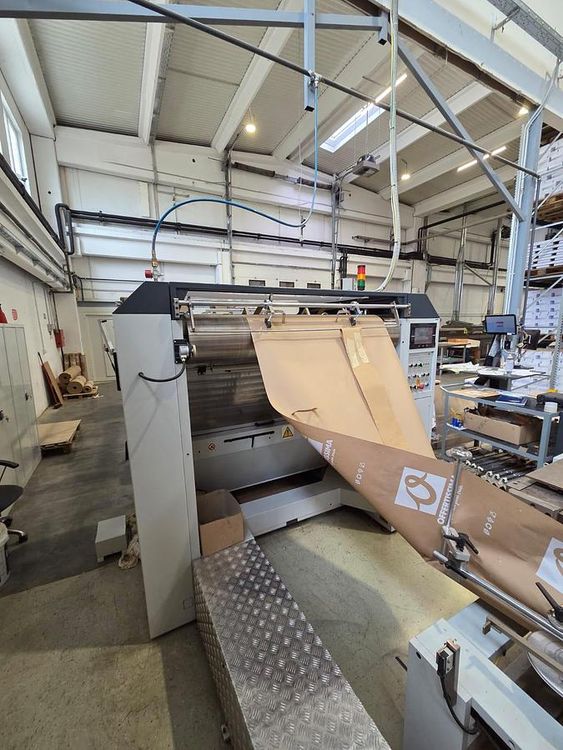

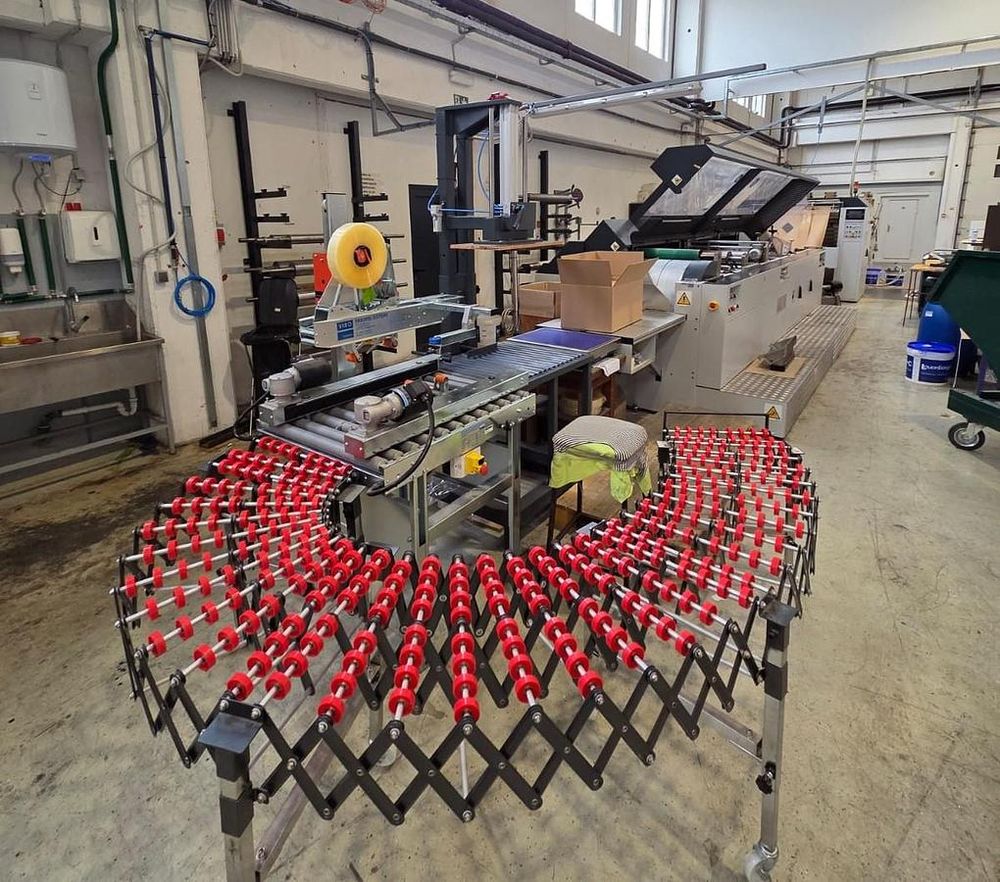

Curioni SUN MASTER 545 with flat handle making unit MP270-18X

Condition Used
Max mechanical speed 160 cycles/minute
Bag width (without handles) (min-max) 220 – 540 mm
Bag width (with handles) (min-max) 240 – 540 mm
Bag length (with handles) (min-max) 270 - 550 mm
Bag length (without handles) (min-max) 270 - 650 mm
Bottom width (min-max) 80 - 200 mm (up to 220 mm with performance limitation)
Cut length (min-max) 350 - 780 mm

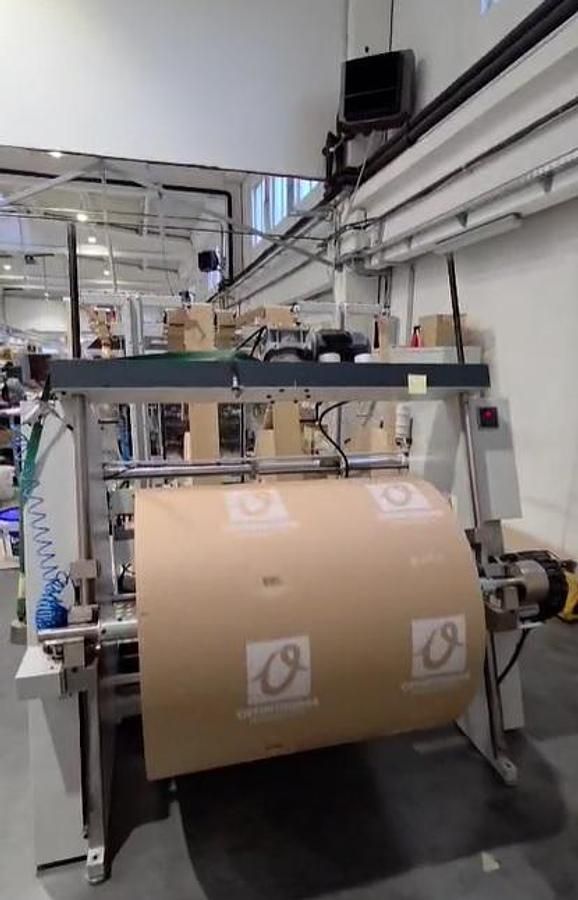

Reel width (min-max) 630 - 1430 mm
Max. diameter of the reel 1500 mm
Inner core diameter 76 mm
Weight of paper 80 -130 gsm

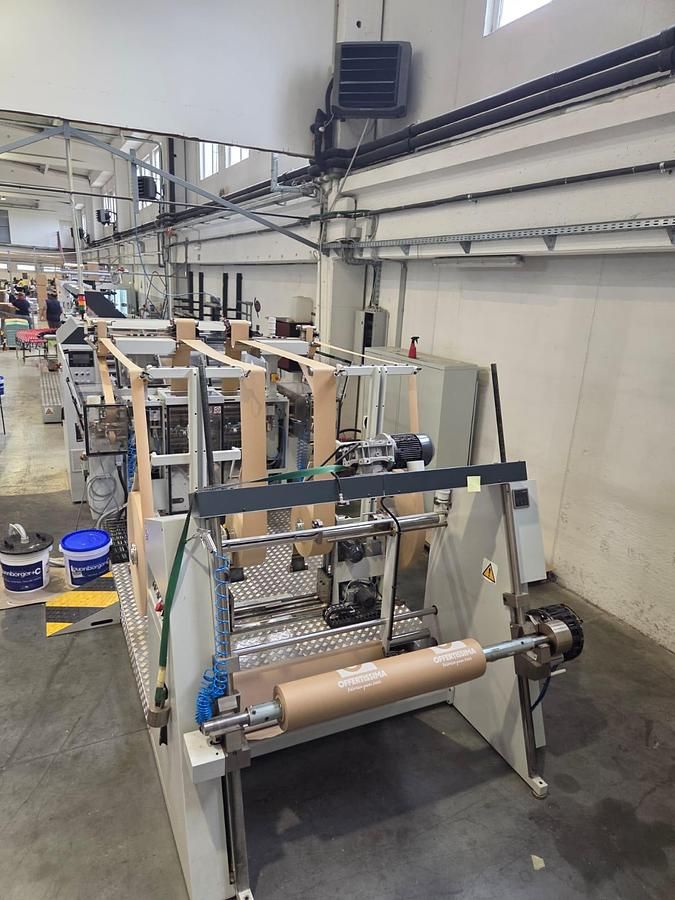

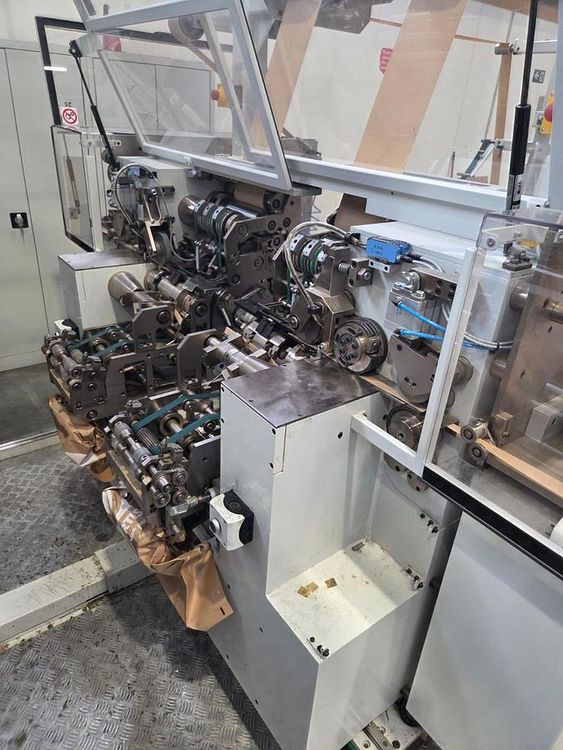

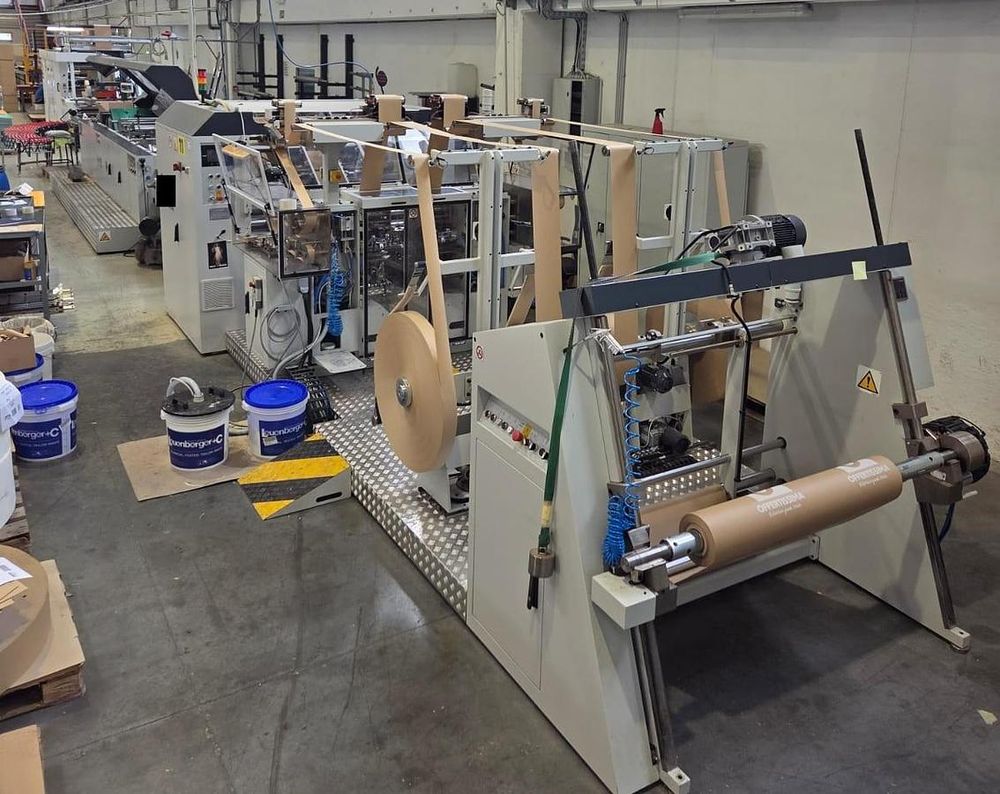

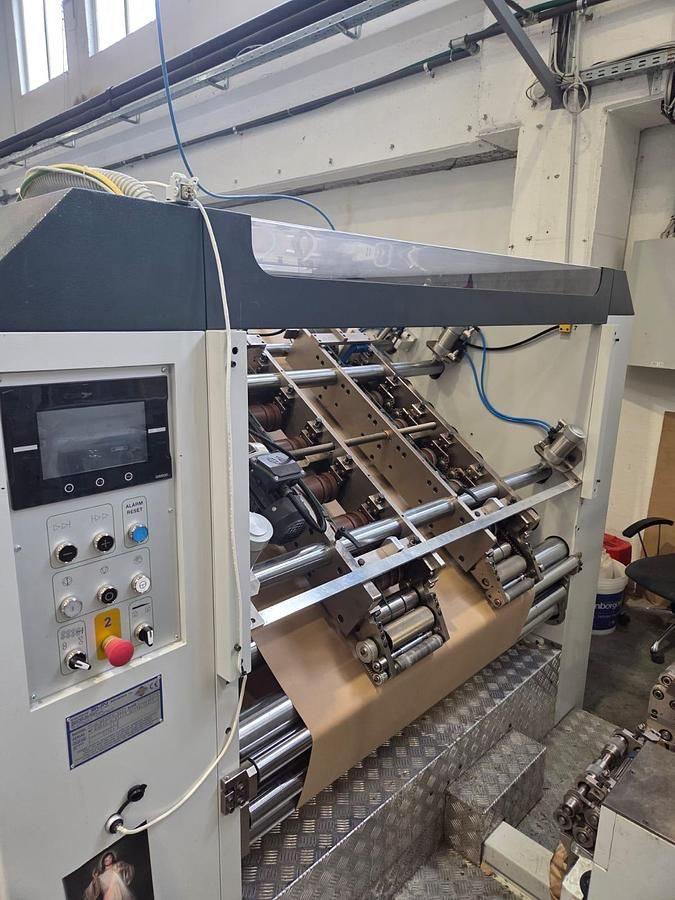

Technical specification of the flat handle making unit MP270-18X :
Type of handle: flat paper handle 4 folded
Min. distance between the handles: 300 mm
Max. distance between the handles: 700 mm
Flat handle height: 18 mm
Flat Handle width 126 mm
Patch height mm 59
Patch length 160 mm
Reels width for flat handle: from 68 to 70 mm
Max. diameter of paper reels for flat handle: 1200 mm
Inner core reel diameter for flat handle: 76 mm
Weight of paper for flat handle: 70-100 gsm
Reels width for patches: 160 mm
Max. diameter of paper reels for patches: 1200 mm
Inner core reel diameter for patches: 76 mm
Weight of paper for patches: 70 -100 gsm

General technical features :
Steel plates frame with connections in electro-welded carpentry
Main Motor: 14,3 kW A.C.
The transmission is realized with module precision gears and chains
Electrical plant complying with the IEC standards, with protection degree IP 22
Guards: safety hoods connected to the machine start/stop system
The machine complies with the EU Machine Regulations

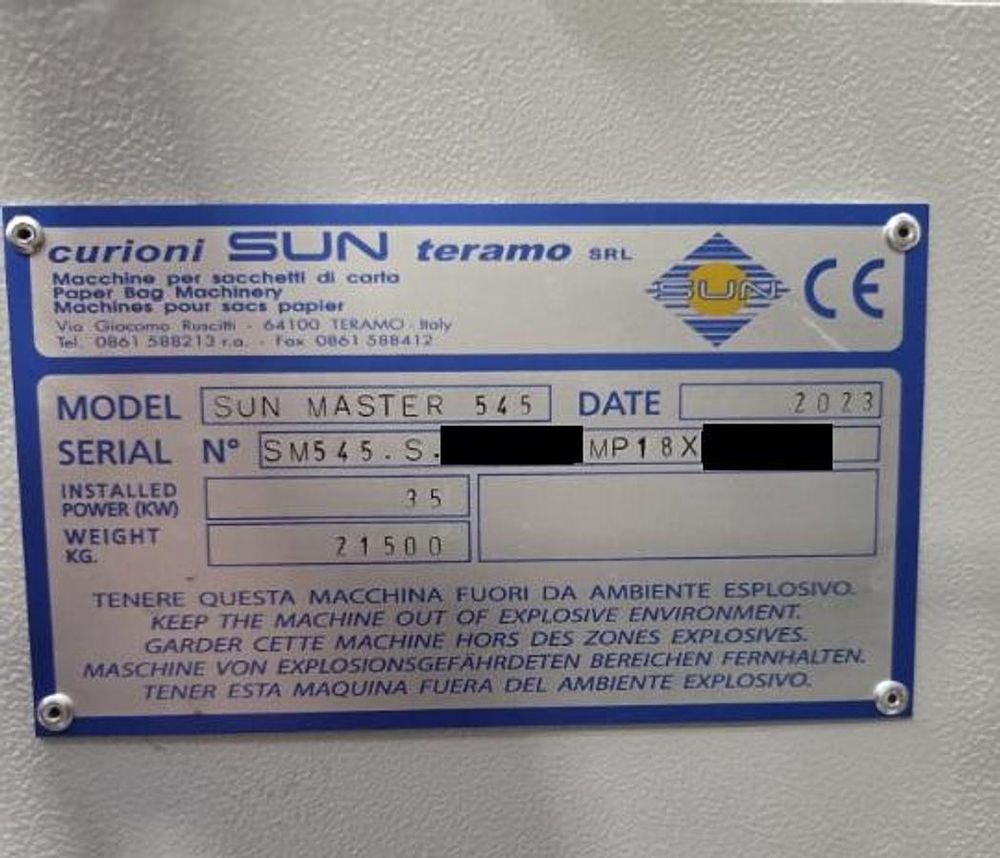

Total gross weight kg 22000
Total installed electrical power: Kw 35.
Power supply three-phase 400 V + NEUTRE + GROUND at 50 Hz + 5%
Compressed air supply 600/700 kPa, dry and clean
Compressed air consumption: 100 Nl/min (no compressor is supplied with the machine)
Dimensions of the machine: length 15340 mm, width 2564 mm, height 2305 mm
The machine is painted grey RAL 7035. Top covers is painted dark grey RAL 7016
