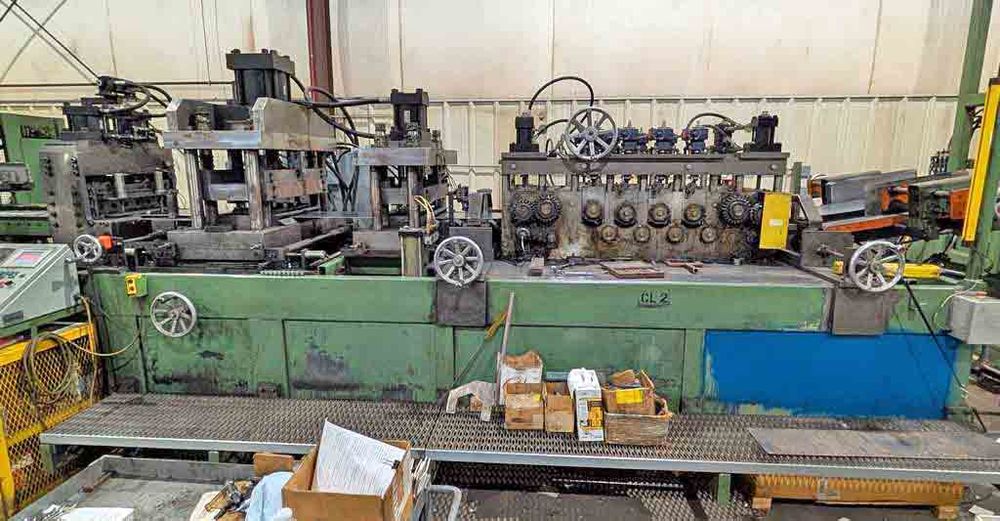

CUSTOM Rollform Cut To Length Line

Max strip width: 24 in
Max material thickness: 0.250 in
Max coil weight: 7,500 lb
Cut length minimum: 6 in
Cut length maximum: 240 in
Line speed: 50 FPM
Line direction: Right to left

Features / Equipment
Entry coil car
Upender
Hydraulic cylinder operation
Mandrel uncoiler
Overarm holddown
Hydraulic expansion
Driven mandrel
Coil keepers
Traveling base
Peeler table
Hydraulic cylinder actuation
Adjustable side guides
Entry side guides
Manual handwheel adjustment
9-roll straightener
5 over 4 roll configuration
Drive motor with reducer
Entry driven pinch rolls
Exit driven pinch rolls
Hydraulic cylinder loading
Hydraulic punching stations
Exit side guides
Hydraulic shear
Magnetic automatic stacker
Side discharge conveyor
Main hydraulic power unit
Operator control panel
AMS controls
