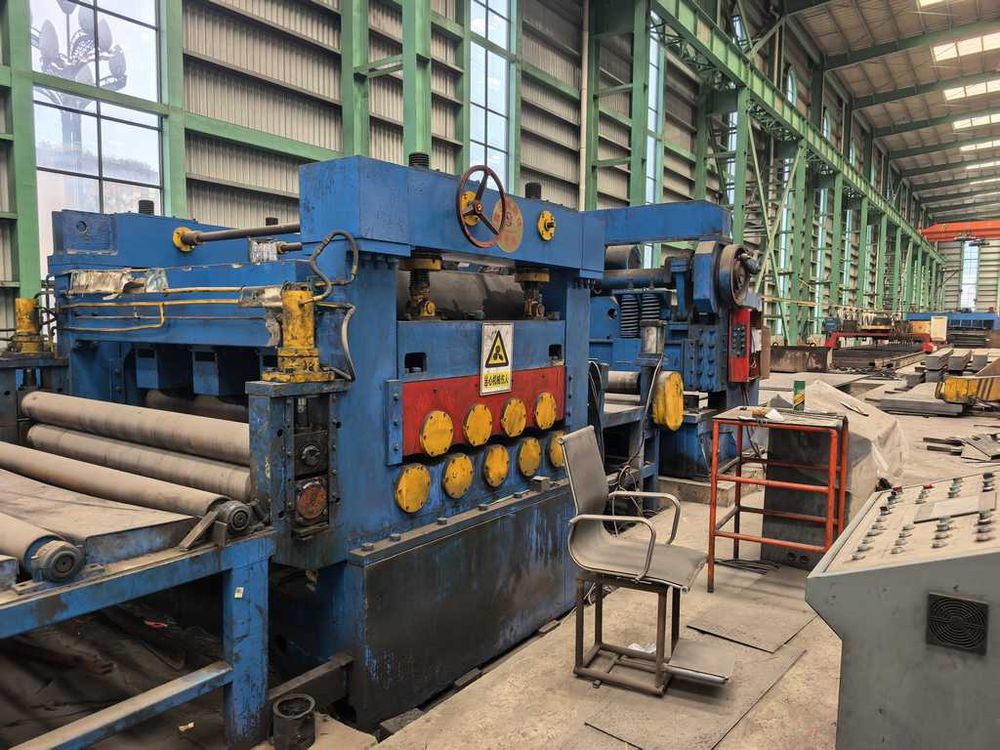

Cut To Length Line 78.74" x 0.787" x 66,000#

Material Hot Rolled Steel Q235
Max. Coil Weight 66,000 lbs
Max. Coil Length 78.74"
Thickness 0.315" – 0.787"
Line Direction Left to Right
Coil Car Pit Type
Uncoiler
Peeler/Holddown
5 Roll Pre-Leveler 300 mm Dia. Rolls
5 Roll Pre-Leveler 2 over 3 Rolls
5 Roll Pre-Leveler 132 kW DC Motor
Conveyor
Slitter Head Entry Side Guides
9 Roll Main Leveler Entry Pinch Rolls
9 Roll Main Leveler 240 mm Dia. Rolls
9 Roll Main Leveler 4 over 5 Rolls
9 Roll Main Leveler 200 kW DC Motor
Mechanical Shear
Runout Table
Main Operators Control Panel
Electric Cabinets
Hydraulic Stations
Line Installed Removal, Loading and Shipping Charges Not Included
