Wafios FUL 8
EUROPE (Western and Northern)

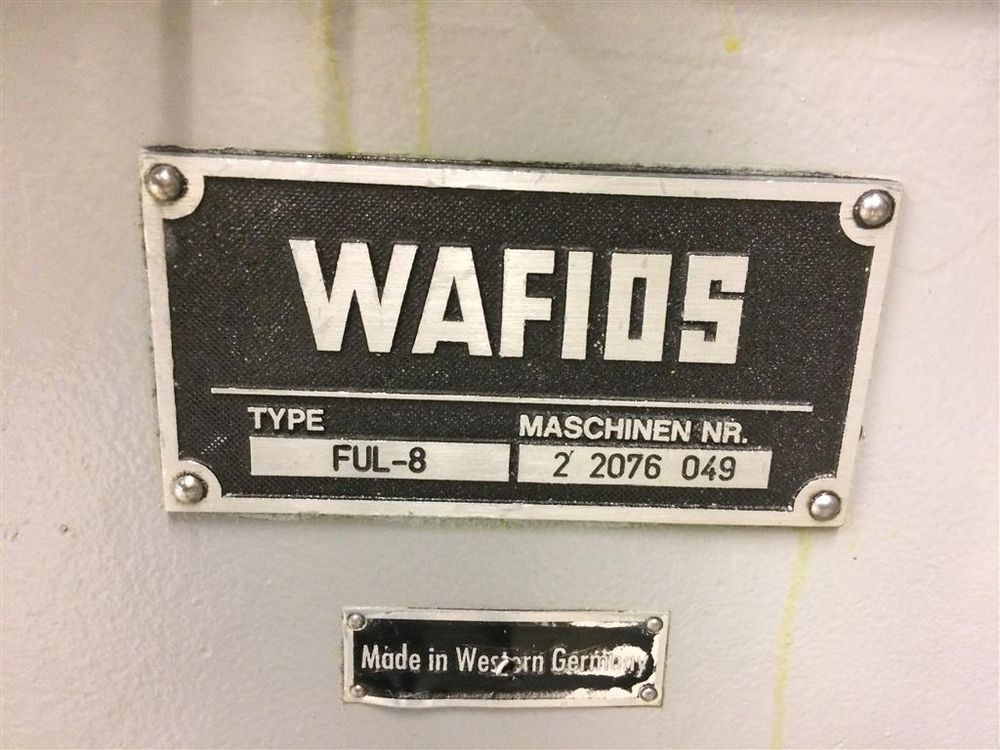

WAFIOS FUL 8
year of manufacture: 1982/2000

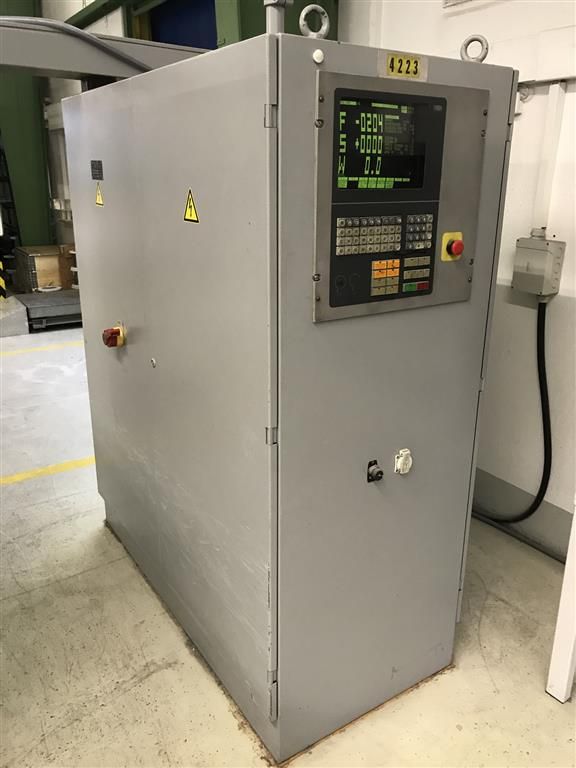

WIRING AND CUTTING MACHINE / MACHINE WAS UPGRADED WITH A NEW
CONTROL SYSTEM IN 2000

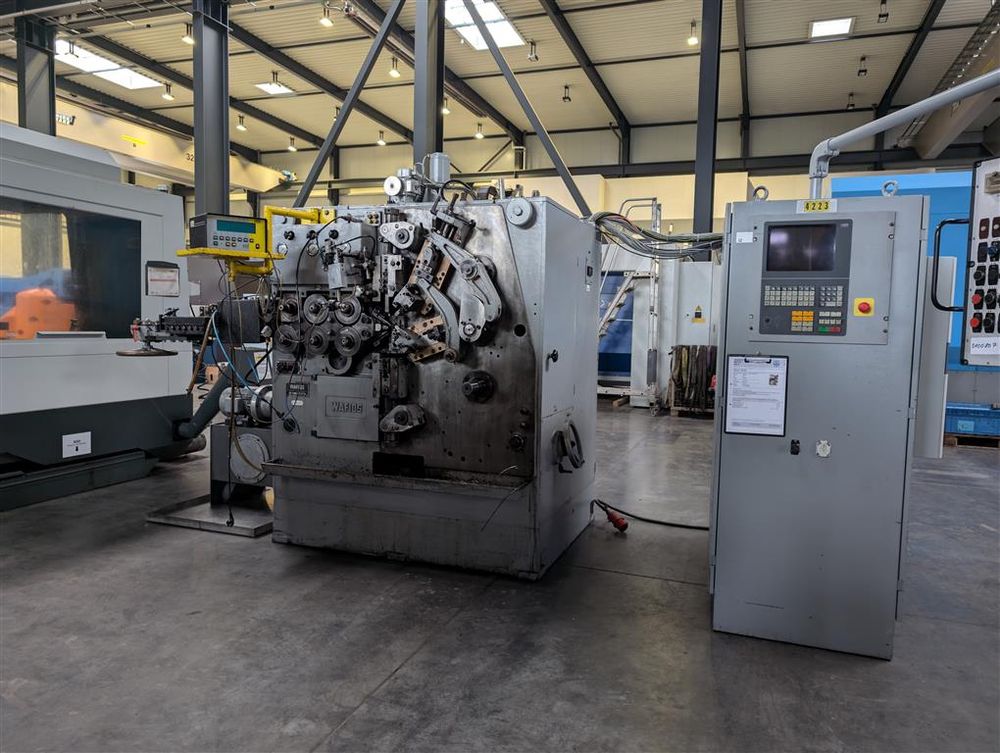

A programmable, electronically-hydraulically controlled universal spring coiling
machine for the production of right and left-hand tension and compression
springs as well as torsion springs.
The springs can be produced with any pitch and shape of spring body.
Output max. 90 pieces/min.
Outer spring Ø 10 - 120 mm
Unlimited wire feed length, speed = 27 - 80 m/min.

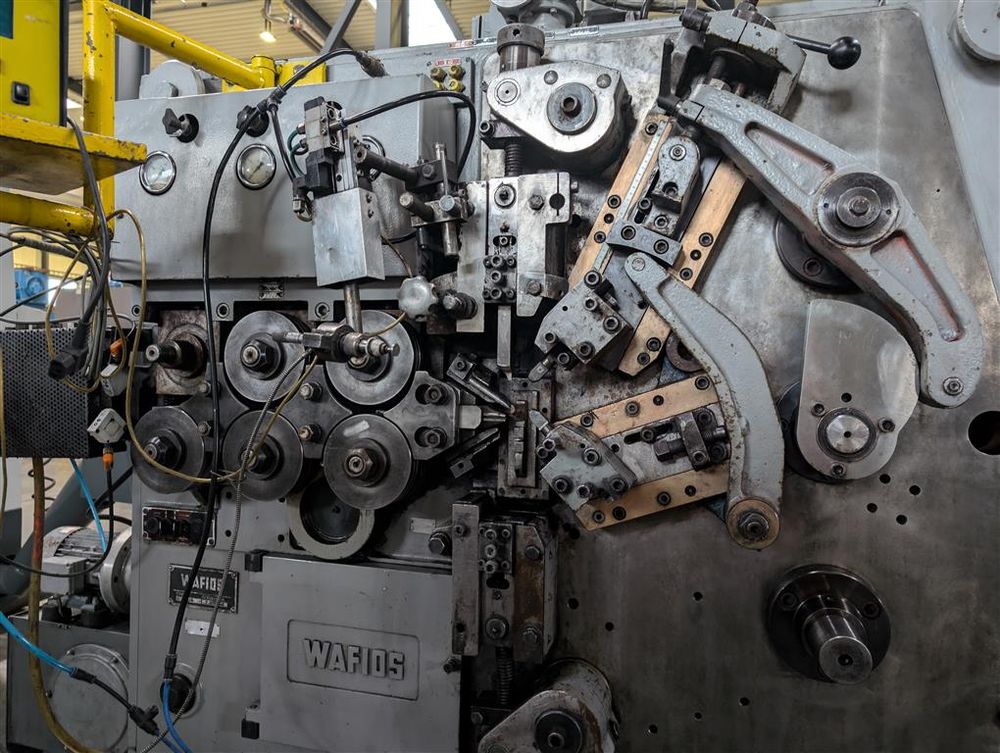

Coiling device: two-finger system wire thickness Ø 2.0 - 9.0 mm; spring outer Ø
Ø 10 - 120 mm
Single-finger system: wire thickness Ø 3.0 - 7.0 mm; spring outer Ø max. Ø 60
mm
Equipment:

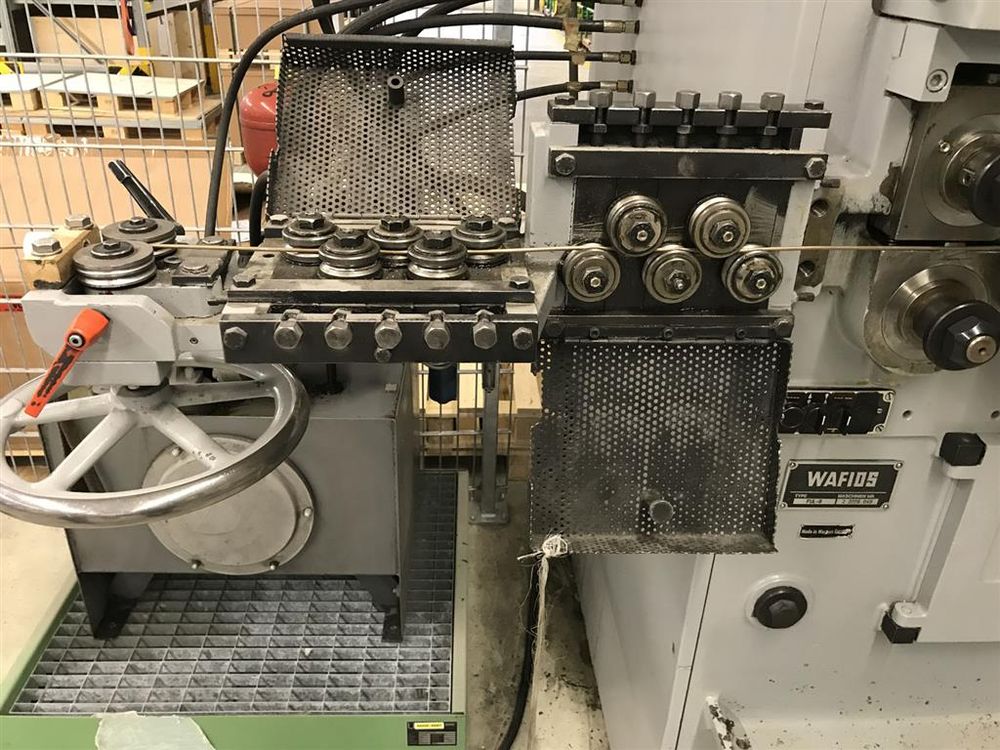

5x feed rollers, wire holder 3 mm two-finger
Spring length measuring device LION PRECISION-PANTHER
Wire roller holder POST, motor-driven, mandrel holder Ø 1,400 mm
Lubrication system

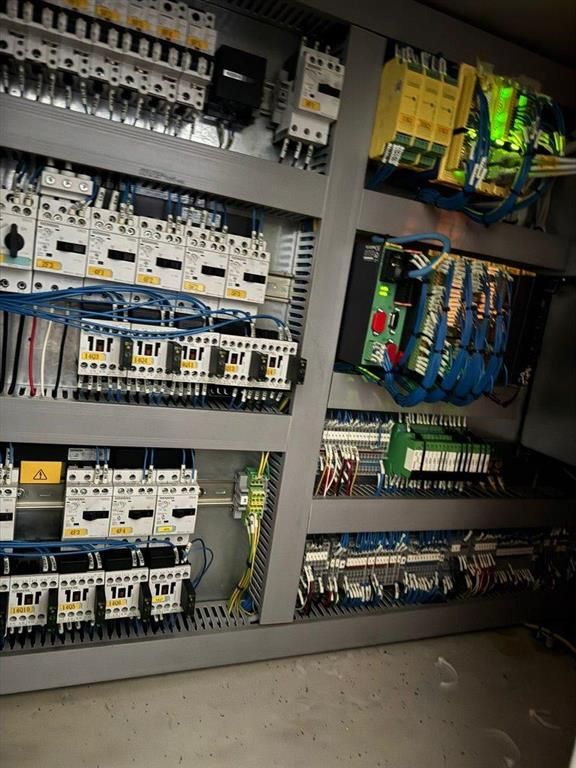

Control cabinet cooler RITA
Hydraulic unit
incl. tools approx. 140 wire rools + approx. 46 wire guidances
Optional many accessories and/or spare parts!
