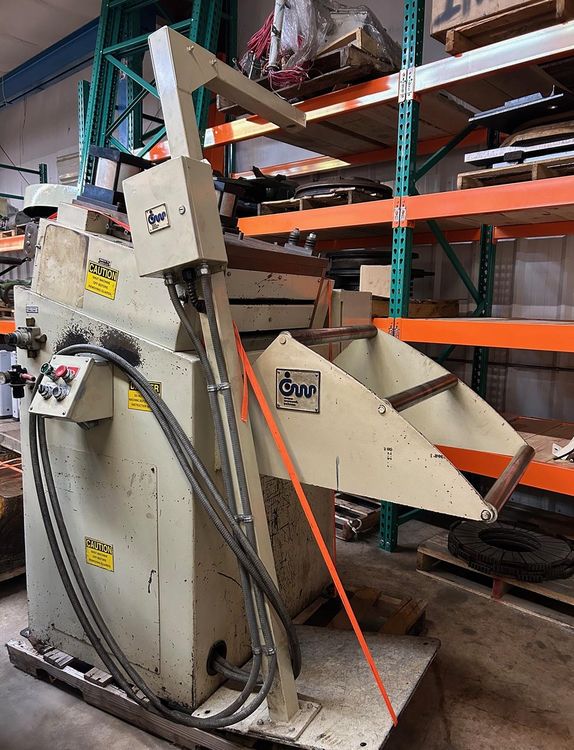

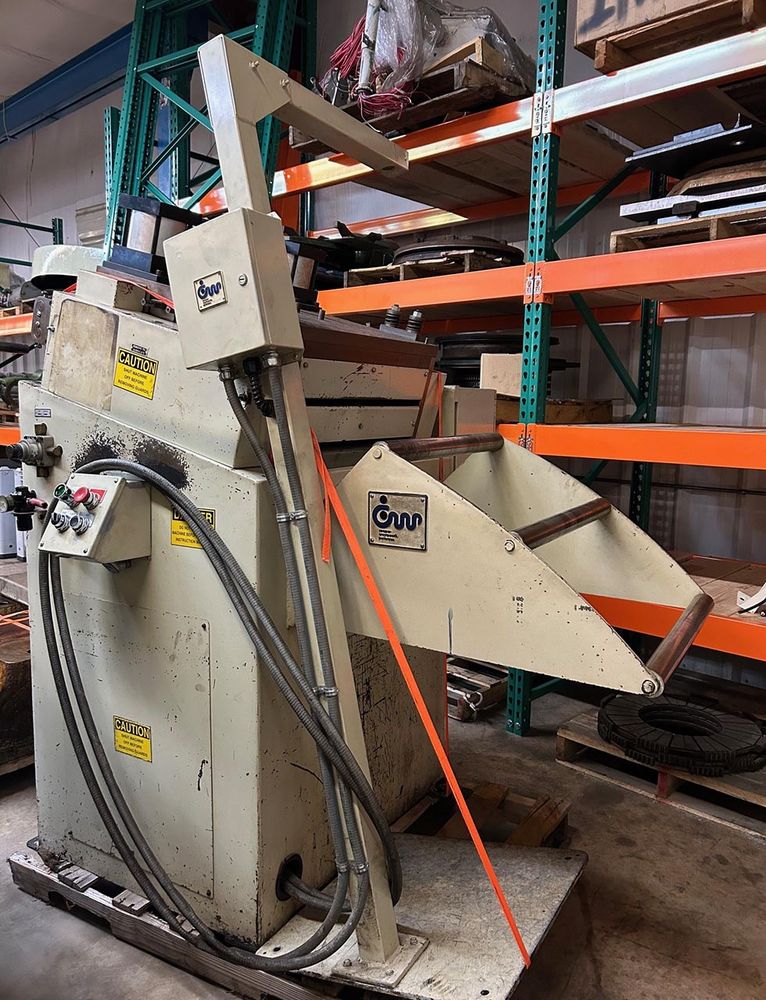

CWP 24C Maximum Stock Width = 24″

Max Thickness Capacity (mild steel) @ 24″ = 0.187″
Minimum Thickness Capacity = 0.021″
Straightening Rolls = 7
Diameter of Roll = 2.750″
Center Distances = 3.250″
Speed Range = 1200 IPM
Line Direction = L-R
Voltage = 230/440V / 3PH
Weight (Approx) = 950 lbs

Unitized steel weldment cabinet construction
Floor lagging provisions in cabinet design
Machined steel top plates
Roller housings 1″ thick
Hardened and ground rolls
Anti-friction bearings on all rolls
Upper straightening rolls single bank configuration
Two-point roll adjustment system
Chain and sprocket roll adjustment synchronization
Dual drive shaft power distribution system
Split gear train drive system
Cluster gearing on pinch rolls
Modulating drive system for output speed control
Non-contact laser loop control sensor
Automatic loop control system
Forward and reverse jog control
Calibrated roller housings for repeat settings
Exit cascade rolls for material support
Adjustable hardened edge guiding collars
Entry stock roller guide system
Fully enclosed drive and power train
Data plates included
Cautionary signs included
Operation and maintenance manual included
