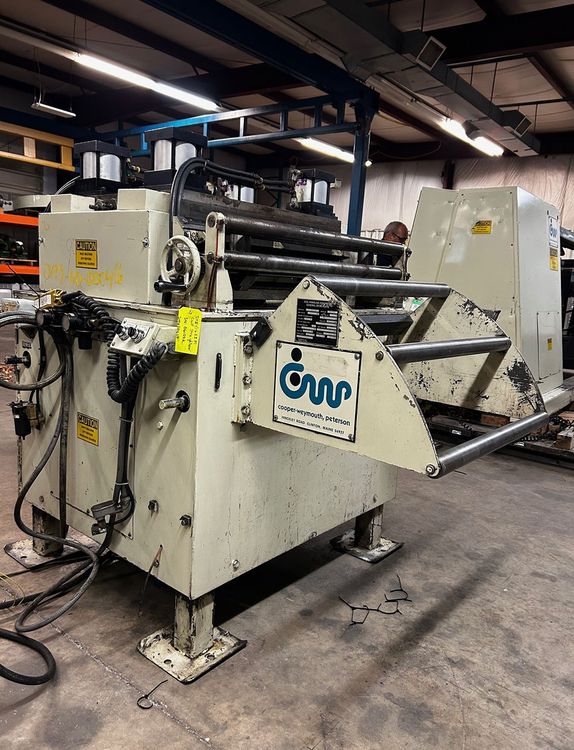

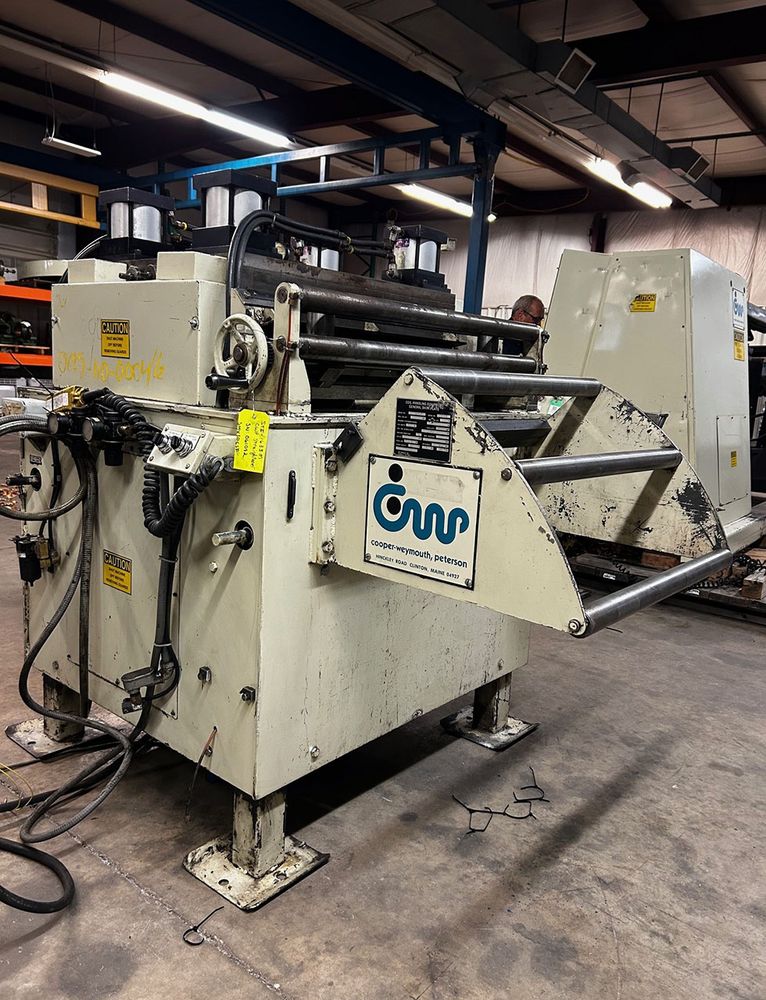

CWP SMX30CSF Maximum stock width = 30″

Servo straightener feed machine
Maximum thickness capacity (mild steel) = 0.078″
Straightening rolls = 7
Roll diameter = 2.75″
Center distance = 3.25″
Line direction = R – L
Electrical specification = 220/440V / 60Hz / 3PH
Weight (approx.) = 3,500 lbs
Unitized steel weldment cabinet construction
Cabinet designed for floor lagging installation
Machined steel top plates
Roller housings = 1″ thick
Hardened and ground rolls
Anti-friction bearings on all rolls
Upper straightening rolls single bank mounting
Two-point roll adjustment system
Chain and sprocket roll adjustment synchronization
Dual drive shafts power distribution system
Split gear train drive system
Cluster gearing on pinch rolls
Modulating drive system for output speed control
Non-contact laser loop control sensor
Automatic loop control system
Forward and reverse jog control
Calibrated roller housings for repeat settings
Exit cascade rolls for material support
Adjustable hardened edge guiding collars
Entry stock roller guide system
Fully enclosed drive and power train
Data plates included
Cautionary signage included
Operation and maintenance manual included
