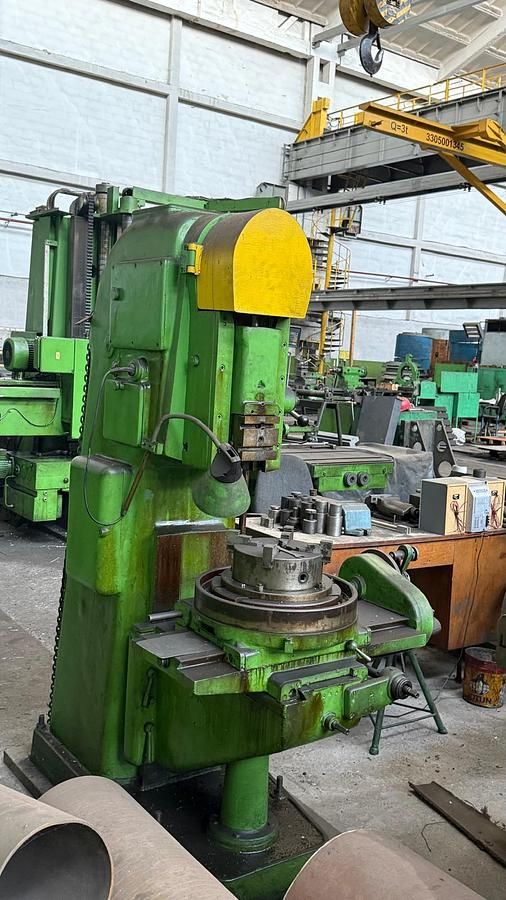

DAA16 Slotting Machine Maximum stroke 160 mm

Ref : 2738143-3-MT

Condition : Used

Manufacturer : -

Model : DAA16

Type : Slotting Machine

Spindle Speed : Maximum stroke 160 mm

Year(s) : -

Quantity : 1

Location : Seller or machines location:
EUROPE (Central and Eastern)

Last check : 22 Jan. 2026

Double strokes per minute 60, 100, 160
Table diameter 450 mm
Longitudinal table travel 350 mm
Vertical table travel 300 mm
Distance from tool mounting plane to recess in body 360 mm
Ram tilt angle ±10°
Longitudinal and transverse table feed (stepless) 0-0.6 mm
Rotary table feed for Ø200 mm 0-0.95 mm
Motor speed 1500 rpm
Motor power 2.2 kW
Overall dimensions 1400x1130x1990 mm
Machine weight 1700 kg
