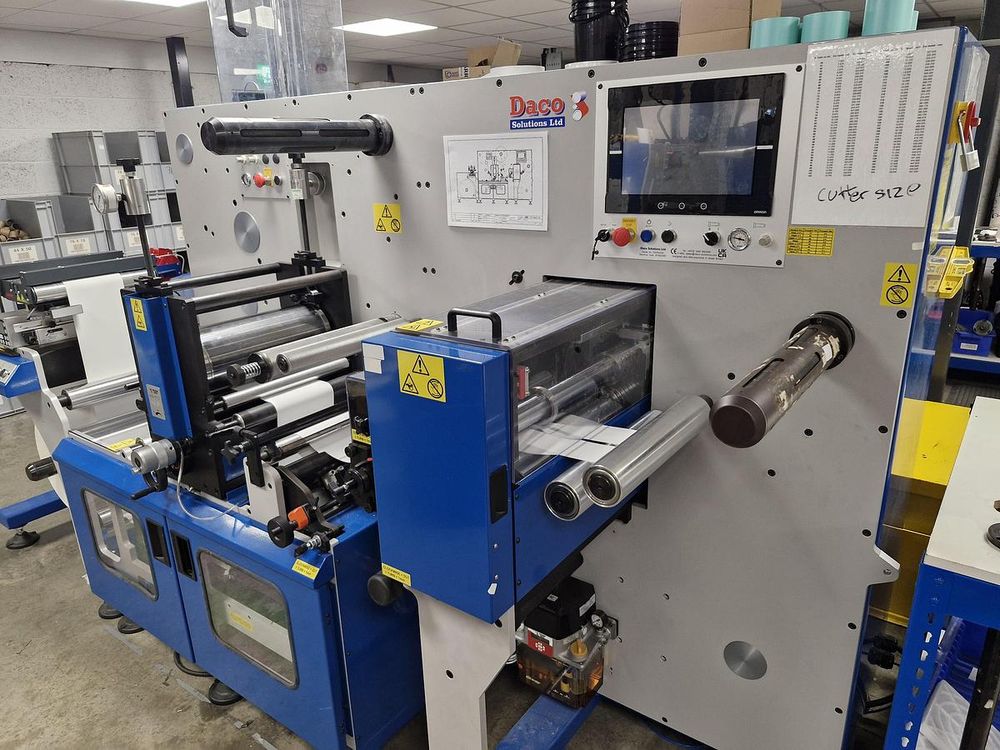

Daco DF 350 SRD Sermi

Rotary die station with matrix rewind (full rotary & semi-rotary)
Servo driven infeed nip roller
BST electronic web guide
Max web width: 350mm (13.75”)
Minimum web width 200mm (8”)
Maximum unwind diameter: 600mm (23.6")
Maximum web speed: 80 metres / minute
Product Rewind
Daco back scorer
Maximum web speed: 175 metres /minute (574 feet/minute)
Count Facility
12.1" Colour touch screen HMI operator interface
Razor slitting
Rotary scissor slitting unit

Matrix stripping tower +/- 25mm (1") correction
Full rotary cutter repeat lengths: 203-558mm (8"-22")
Ultrasonic sensor - enables guiding of opaque and clear materials
Gearing 1/8cp 20 degree pressure angle
Air requirements: 80 psi, 1cfm
Electrics: 380-415 volts, 3 phase, neutral & earth, 50/60 Hz, 16 amps
Die cut to register servo system with a +/- 0.25mm (0.010") accuracy
