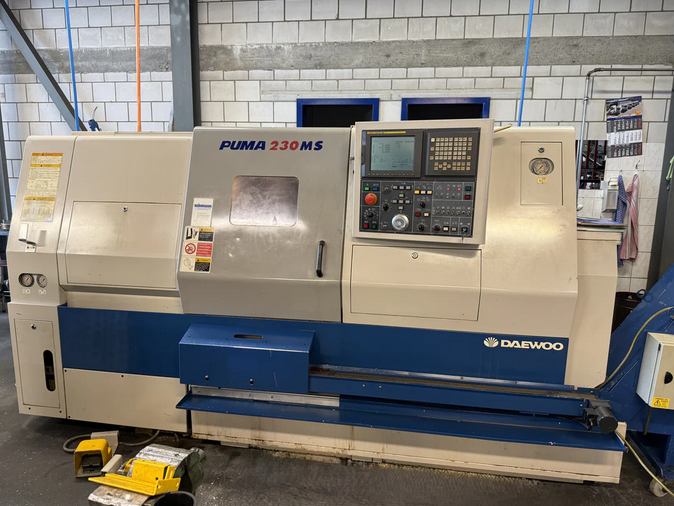

Daewoo FANUC 18i-T 3500 rpm PUMA 230 MSC 3 Axis

X-axis travel 205 mm
Z-axis travel 580 mm
Rapid traverse X 24 m/min
Rapid traverse Z 30 m/min
C-axis 360°
Control FANUC 18i-T
Swing over bed 550 mm
Swing over carriage 390 mm
Maximum turning diameter 290 mm
Maximum turning length 492 mm
Spindle bore 90 mm
Internal spindle diameter 76 mm
Spindle speed 35–3500 rpm
Spindle motor power 15 kW
Spindle torque 330 Nm
Spindle nose BMT 55
Back spindle nose 110 mm
Back spindle speed 6000 rpm
Back spindle positioning increment 5°
Chuck diameter 255 mm
Turret positions 12
Driven tools turret 12
Voltage 400 V 50 Hz
Total power required 40 kVA
Machine weight 4240 kg
Machine dimensions 3313 x 1670 x 1740 mm

3-jaw chuck
Set of soft jaws
Set of hard jaws
Coolant system 140 l
Pick-up spindle
Automatic parts removal
Chip conveyor
Set of steel holders
Driven tools
Spare parts
