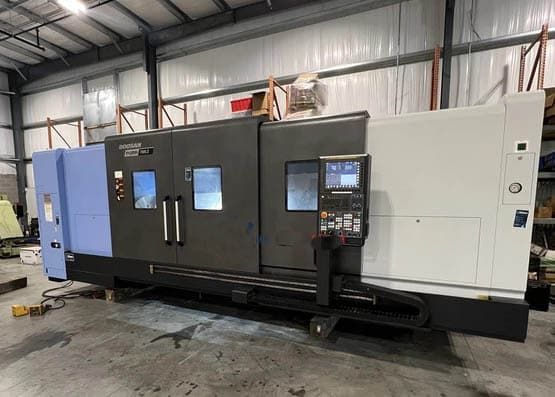

Daewoo Fanuc 32i-B CNC 1,500 rpm PUMA 700L-II 2 Axis

X-Axis travel: 470 mm (18.5″)
Z-Axis travel: 3,235 mm (127.3″)
Swing over bed: 1,030 mm (40.55″)
Swing over carriage: 800 mm (31.5″)
Maximum turning diameter: 900 mm (35.4″)
Maximum turning length: 3,200 mm (126″)
Distance spindle nose to tailstock center: 3,600 mm (141.7″)
Spindle speed: 1,500 rpm
Spindle nose: A1-15
Draw tube I.D.: 166.5 mm (6.55″)
Spindle bore diameter: 181 mm (7.12″)
Spindle motor: 45 kW (60 hp) AC, S6 60% rating
Maximum spindle torque: 6,605 Nm (4,873 ft-lb)
Tailstock center: MT #6 built-in dead
Tailstock quill diameter: 160 mm (6.3″)
Tailstock quill stroke: 150 mm (5.9″) programmable
Tailstock body stroke: 3,135 mm (123.4″)
Maximum tailstock quill thrust: 32 kN (7,150 lb)
Maximum tailstock hydraulic pressure: 40 bar (580 psi)
Tailstock guide way span: 390 mm (15.3″)
Turret: 12 tools
Turret tool holder type: DI Base Holder
Turning tool shank size: 32 mm (1.25″)
Boring bar diameter: 80 mm (3.0″)
Turret index time: 0.25 second
Tool selection: Bi-directional
Curvic coupling diameter: 400 mm (15.75″)
Turret clamping force: 177 kN (39,790 lb)
Turret index repeatability: ±0.0005 degree
X-Axis rapid traverse: 12 m/min (472 ipm)
Z-Axis rapid traverse: 10 m/min (394 ipm)
X-Axis ball screw diameter: 50 mm (2.0″)
Z-Axis ball screw diameter: 63 mm (2.5″)
X-Axis feed thrust (continuous): 15,517 N (3,488 lb)
X-Axis feed thrust (intermittent): 21,724 N (4,884 lb)
Z-Axis feed thrust (continuous): 29,981 N (6,740 lb)
Z-Axis feed thrust (intermittent): 38,975 N (8,762 lb)
X-Axis repeatability: ±0.002 mm (±0.00008″)
Z-Axis repeatability: ±0.003 mm (±0.00012″)
Coolant pump pressure: 4.5 bar (65 psi)
Coolant pump motor: 0.75 kW (1.0 hp)
Coolant tank capacity: 560 l (150 gal)
Hydraulic tank capacity: 66 l (17 gal)
Way lubrication tank capacity: 4.3 l (1.1 gal)
Machine weight: 21,800 kg (48,100 lb)
Floor space length x width: 7,360 mm x 2,766 mm (290″ x 109″)
Floor space length with hinge belt chip conveyor: 8,470 mm (334″)
Machine height: 2,590 mm (102″)
Height from floor to spindle center: 1,220 mm (48″)
Voltage: 205-235V/3 ph/60 Hz
Power requirement: 65 kVA (170 Amps @ 220 Volts)
Control: Fanuc 32i-B CNC with iHMi touch screen and swiveling operator panel
EZ Guide I Conversational Programming
Tool Load Monitoring System
