Daewoo FANUC 18T 4500 RPM PUMA 230MS 2 Axis

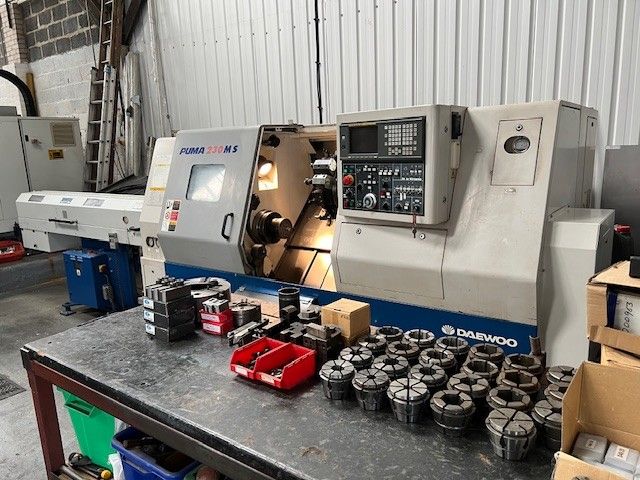

DAEWOO PUMA 230MS
2000

Bar capacity: 65 mm
Control: FANUC 18T
Machine dimensions: 3708 mm x 1574 mm x 1828 mm
Machine weight: 4300 kg
Maximum cutting diameter: 289 mm
Maximum cutting length: 491 mm
Milling RPM: 6000
Rapid feedrate X-axis: 20 m/min
Rapid feedrate Z-axis: 24 m/min
Spindle motor power: 15 kW
Spindle nose: A2-6
Spindle speed: 4500 RPM
Sub spindle bore: 45 mm
Sub spindle max speed: 6000 RPM
Sub spindle motor: 5.5 kW
Swing: 549 mm
Turret positions: 12

3-jaw chuck
C-axis
Milling function
Collet chuck
Collets
Coolant system
Interlocked guards
Low voltage light
Magazine barfeed
Parts catcher
Sub spindle
Swarf conveyor
Tool setter
