Daewoo Fanuc 2-axis CNC control 2800 RPM PUMA 300LC 2 Axis

Ref : 2721141-3-MT

Condition : Used

Manufacturer : Daewoo

Controller : Fanuc 2-axis CNC control

Spindle Speed : 2800 RPM

Model : PUMA 300LC

Nb Of Axis : 2 Axis

Year(s) : 2004

Quantity : 1

Location : Seller or machines location:
AMERICA North (USA-Canada-Mexico)

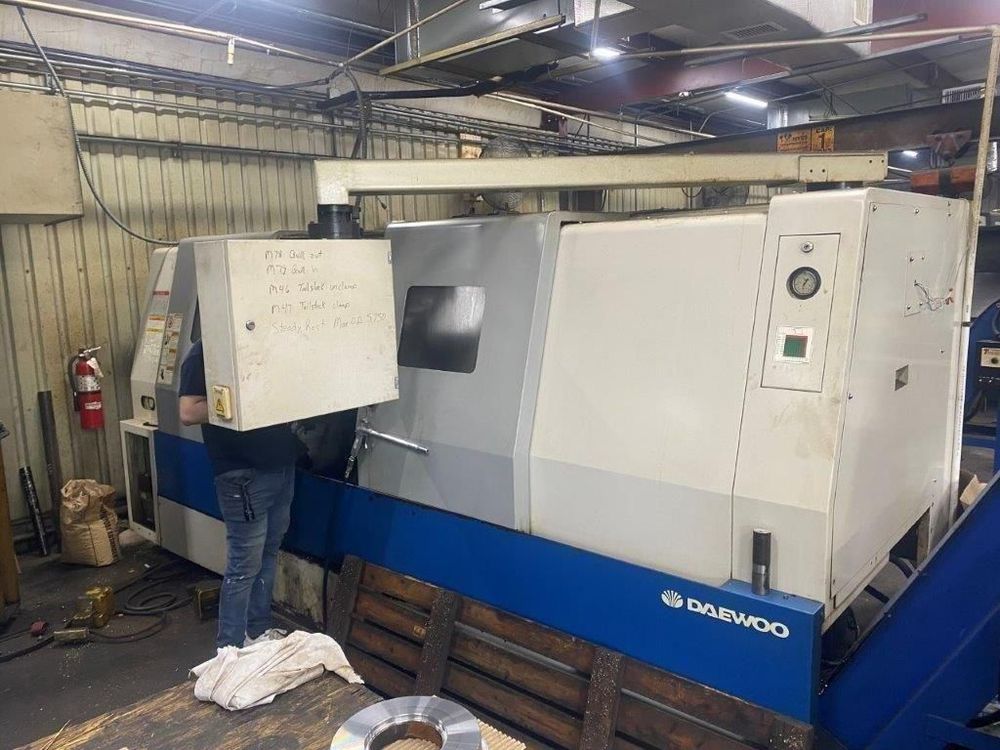

DAWOO PUMA 300LC
2004

Swing: 23"
Maximum machining diameter: 15.7"
Distance between centers: 50.6"
Spindle speed (min): 30 RPM
Spindle speed (max): 2800 RPM
Spindle bore: 4.53"
Main motor power: 35 HP
Spindle nose: A2-11
Turret positions: 10
X-axis travel: 11.1"
Z-axis travel: 51.8"
Tailstock quill diameter: 3.9"
Tailstock quill travel: 3.9"
Tailstock taper: 4 MT
Chuck diameter: 12"
Chuck hole thru: 4"
Number of jaws: 3

Fanuc 2-axis CNC control
Tool eye
Chip conveyor
12" 3-jaw hydraulic chuck
Flood coolant system
