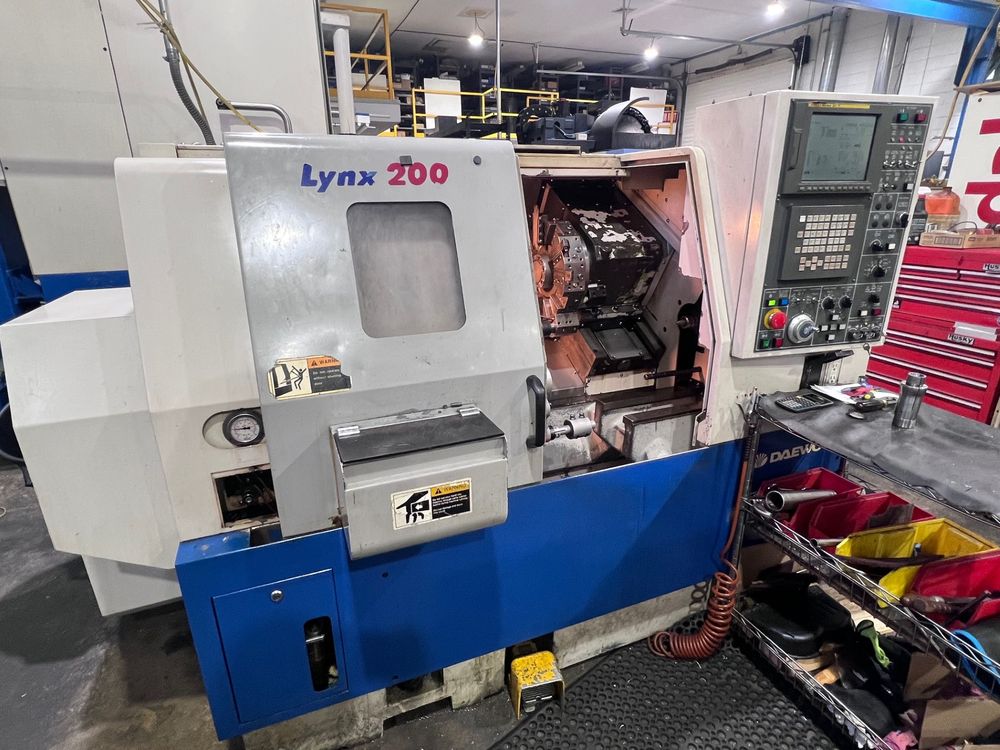

Daewoo Fanuc 21i-T CNC Control 4500 RPM LYNX 200LC 2 Axis

Swing Over Bed 18.11"
Swing Over Saddle 13.78"
Recommended Machining Diameter 6.5"
Maximum Machining Diameter 11.02"
Maximum Work Length 19.68"
Draw Tube Diameter 2.59"
X-Axis Travel 6.3"
Z-Axis Travel 20.86"
Spindle Chuck Diameter 8"
Spindle Speed Range 40–4500 RPM
Spindle Nose A2-6
Spindle Bore Diameter 2.99"
Number of Turret Stations 12
OD Tool Height 1"
Boring Bar Diameter 1.5"
Tailstock Quill Diameter 2.56"
Tailstock Quill Travel 3.15"
Tailstock Taper MT#4
Spindle Drive 9/11 kW

Toolsetter
Collet Chuck
12-Position Turret
Tailstock
Toolholders Included
Manuals Included
Approx. Weight 7,000 lbs
