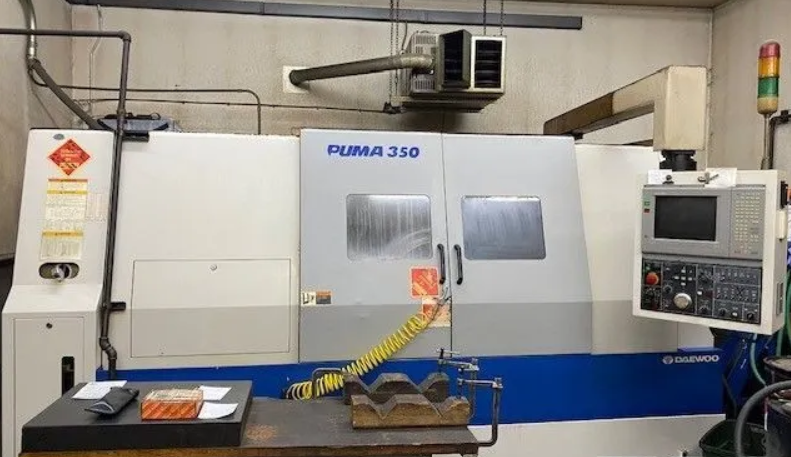

Daewoo Mitsubishi CNC control 2000 RPM PUMA 350B 2 Axis

X-axis travel: 14.3 in
Z-axis travel: 43.5 in
Rapid traverse X-axis: 630 IPM
Rapid traverse Z-axis: 630 IPM
Bar capacity: 4.5 in
Swing over bed: 27.5 in
Swing over carriage: 18.9 in
Maximum turning diameter: 21.7 in
Maximum turning length: 41.4 in
Distance between centers: 44.1 in
Spindle nose: ASA A2-11
Spindle bore: 5.20 in
Draw tube I.D.: 4.62 in
Spindle speed: 20 - 2000 RPM
Spindle power: 40 HP
Spindle torque: 1531 ft-lb
2-speed gearbox
Chuck size: 18 in
Turret stations: 10
Turning tool shank size: 1.0 in
Maximum boring bar diameter: 2.5 in
Turret index time: 0.25 sec
Programmable tailstock
Tailstock quill diameter: 4.7 in
Tailstock quill stroke: 4.7 in
Tailstock taper: MT6
Coolant pump pressure: 70 PSI
Coolant pump flow rate: 10 GPM
Coolant pump motor: 1.5 HP
Chip conveyor
45° slant bed
Z-axis thrust: 6800 lb
Machine dimensions: 174 in x 77 in x 73 in
Machine weight: 16500 lb
