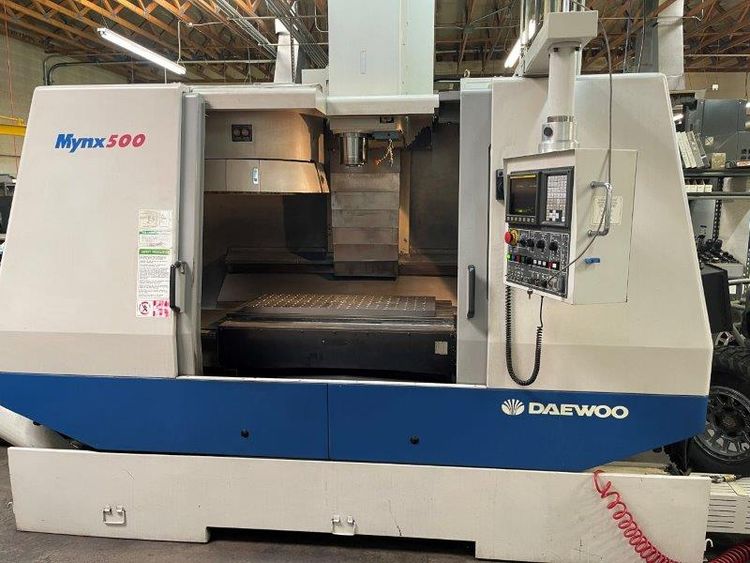

Daewoo MYNX 500

SPECIFICATIONS
TRAVELS:
X-AXIS: 40.2"
Y-AXIS: 20.1"
Z-AXIS: 22.6"
SPINDLE NOSE TO TABLE (MIN.- MAX.): 4.9" - 26"
TABLE LOAD CAPACITY: 1760 LBS

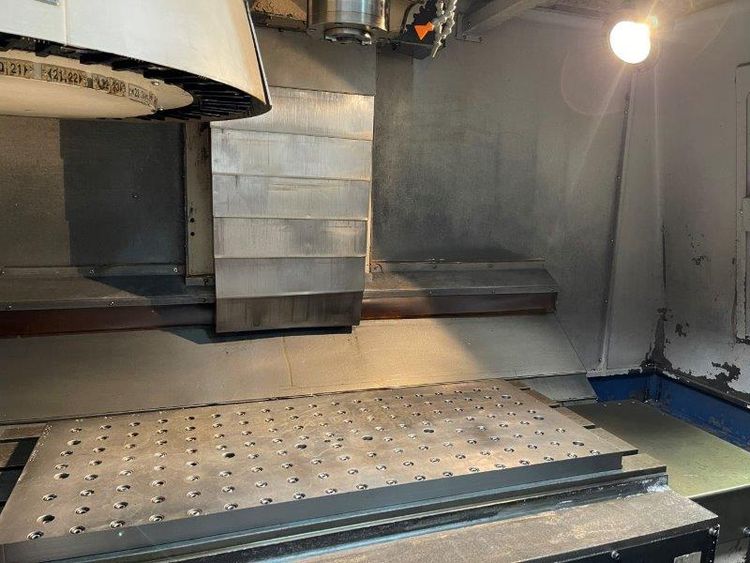

TABLE:
LENGTH: 47.2"
WIDTH: 19.7"
MAX WEIGHT ON TABLE: 1800 LBS

SPINDLE:
TAPER SIZE: 40
SPEED RANGE: 60 - 8000 RPM
SPINDLE POWER: 20 HP

FEED RATES:
RAPID X,Y & Z: 945 INCH/P.M
CUTTING FEED RATE: 315? INCH/ P.M

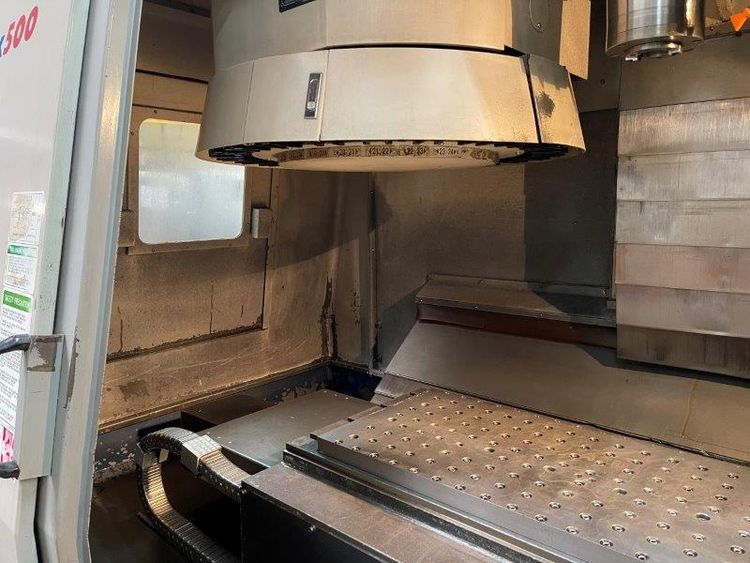

AUTOMATIC TOOL CHANGER:
40 TAPER
CAPACITY: 24
MAX TOOL WEIGHT: 17.6 LBS
MAX TOOL LENGTH: 11.8"
MAX TOOL DIA.: 5.90"
TOOL CHANGE TIME: 1.5 SECOND

GENERAL:

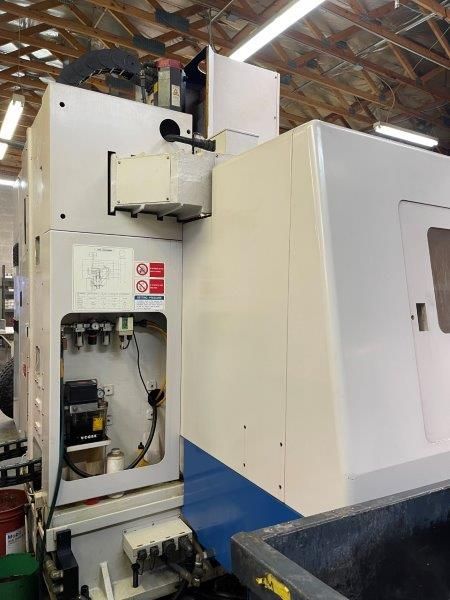

AIR REQUIRED: 80 PSI, 4 SCFM
POWER: 205-220V / 66FLA / 3-PHASE
OVERALL DIMENSIONS: 130" X 104" X 110" HIGH
WEIGHT: 16500 LBS

EQUIPPED WITH
CHIP AUGER
FANUC CONTROL
